Plate heat exchanger Tranter GL-013P/PI

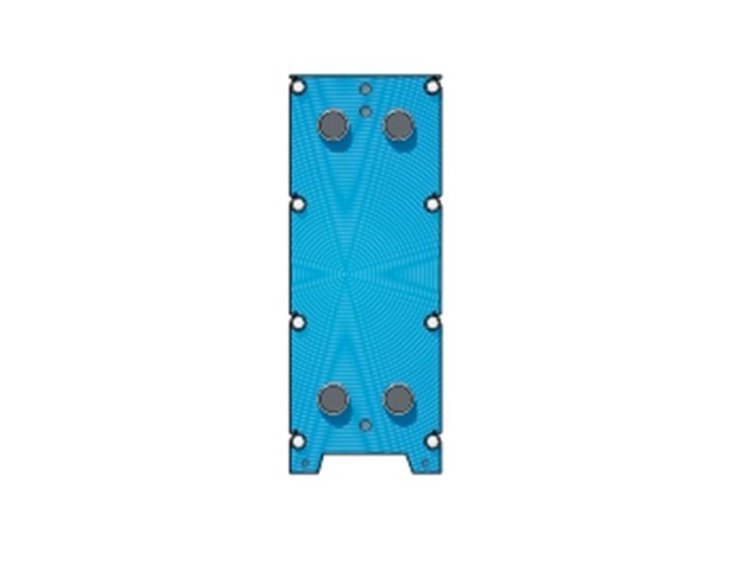

Tranter GL-013 P/PI – this is a plate heat exchanger. Its modular design consists of a package of corrugated plates providing efficient heat transfer. The material of the plates is high–quality Swedish stainless steel. The plates are mounted on two consoles: a carrier and a guide. For greater strength, the plate pack is clamped with two plates: movable and fixed.

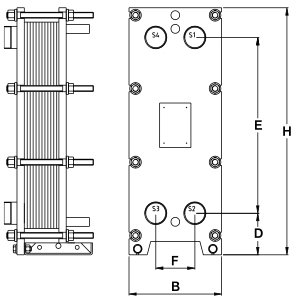

Sizes:

• D – 140 mm;
• height H – 832 mm;
• connection diameter DN – 50/65;
• B – 320 mm;
• E – 592 mm;
• F – 135 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GL-013 P/PI

• maximum operating temperature 180 °C;
• Features

  Brand

  Tranter
