Plate heat exchanger Tranter GL-016PI

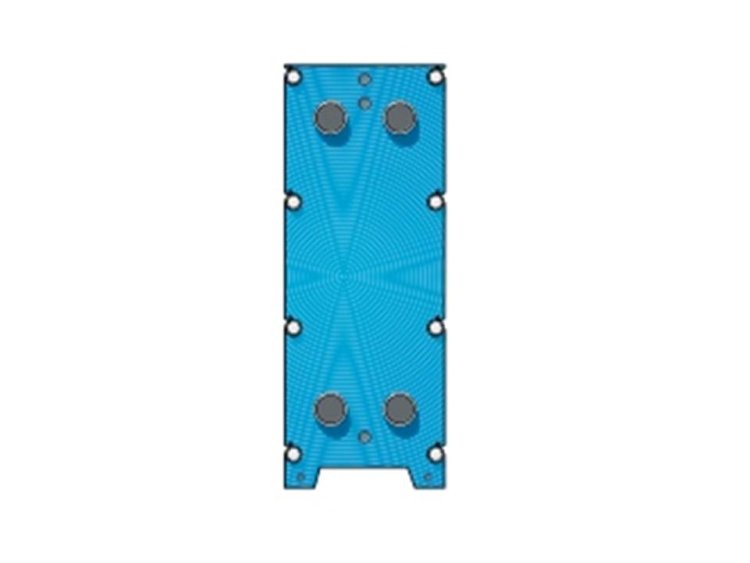

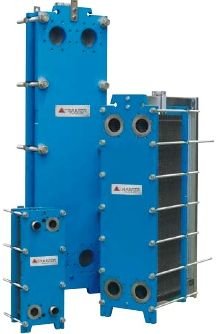

Plate heat exchanger design Tranter GL-016 PI It is modular and is a package of corrugated stainless steel plates supplied from Sweden. The plates are fixed on two consoles: a carrier and a guide. The clamping of the plates by movable and fixed plates gives greater structural strength.

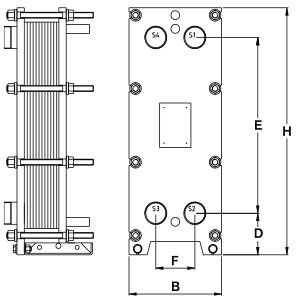

Sizes

• D – 140 mm;
• height H – 832 mm;
• connection diameter DN – 50/65;
• B – 320 mm;
• E – 592 mm;
• F – 135 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GL-016 PI

• maximum operating temperature 180 °C;
• The maximum working pressure is 16 bar;
