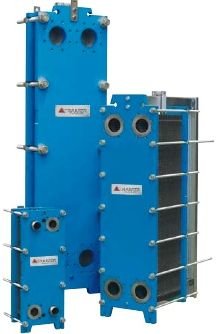

Plate heat exchanger Tranter GL-205N/P

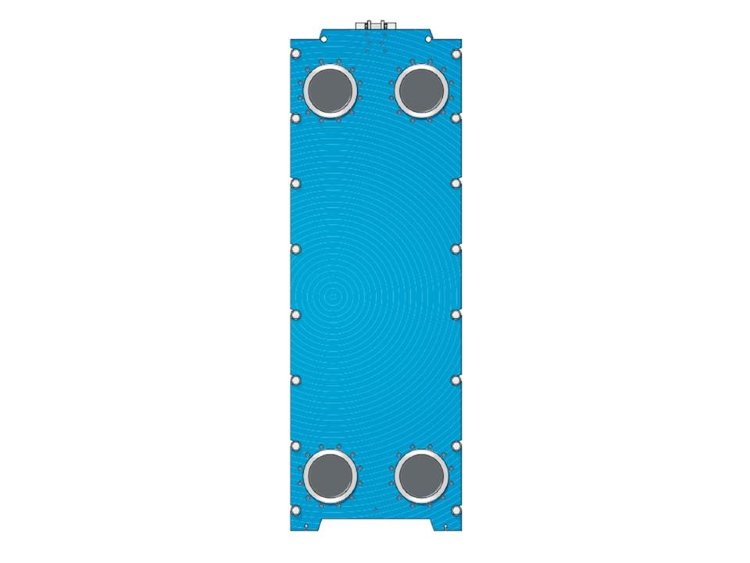

The main feature of the heat exchanger Tranter GL-205 N/P is the modularity of the design. The heat exchanger consists of a package of corrugated plates, which are made of Swedish stainless steel. The package of plates is attached to two consoles: a carrier and a guide. For reliability, they are also clamped with two plates: movable and fixed.

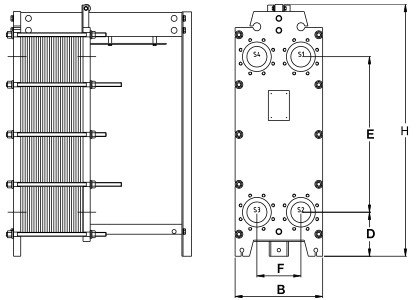

Sizes

• D – 360 mm;
• height H – 3215 mm;
• the diameter of the connection is DN – 300;
• B – 1060 mm;
• E – 2300 mm;
• F – 570 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GL-205 N/P HEAT EXCHANGER

• maximum operating temperature 180 °C;
• максимальное рабочее давление 16 бар;
