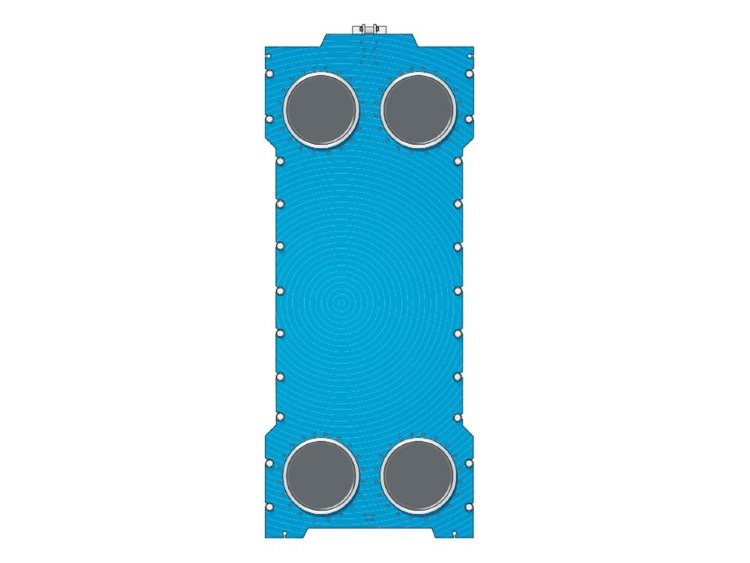

Plate heat exchanger Tranter GL-230N

Heat exchanger Tranter GL-230 N It is characterized by a lightweight modular design, the main component of which is a package of heat exchange plates. Only high-quality stainless steel from Sweden is used for their manufacture. The package of plates is mounted on the carrier and guide consoles with a clamp between two plates: movable and fixed.

Sizes

• D – 450 mm;
• height H – 3172 mm;
• the diameter of the connection is DN – 450;
• B – 1510 mm;
• E – 2090 mm;
• F – 700 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GL-230 N HEAT EXCHANGER

• maximum operating temperature 180 °C;
• The maximum working pressure is 1
