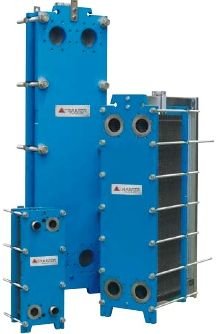

Plate heat exchanger Tranter GL-330P

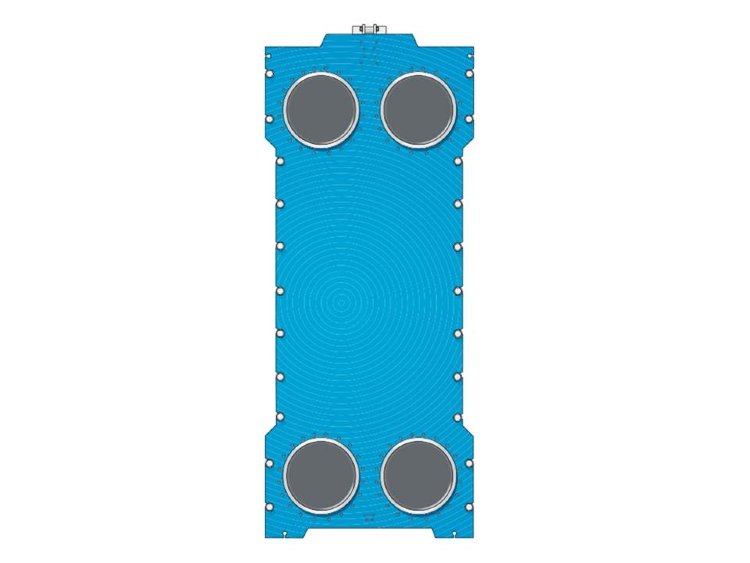

Structural design of the heat exchanger Tranter GL-330 P It is based on the use of a package of corrugated plates placed relative to each other at an angle of 180 degrees. The material of manufacture is Swedish stainless steel.

The plates are assembled in a package, which is fixed to the carrier and guide consoles. For greater strength, the package is clamped with two plates: movable and fixed.

Sizes

• D – 450 mm;
• height H – 3782 mm;
• the diameter of the connection is DN – 450;
• B – 1540 mm;
• E – 2700 mm;
• F – 700 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GL-330 P

• maximum
