Plate heat exchanger Tranter GL-430N

The design of the heat exchanger model GL-430 N It consists of a package of corrugated plates. The material of manufacture is Swedish stainless steel.

The modular design is particularly lightweight and compact. The package of plates is fixed on the carrier and guide consoles. It is also clamped between movable and fixed plates.

The corrugated plates are qualitatively sealed along the perimeter and positioned at an angle of 180 degrees in order to ensure an optimal heat transfer coefficient.

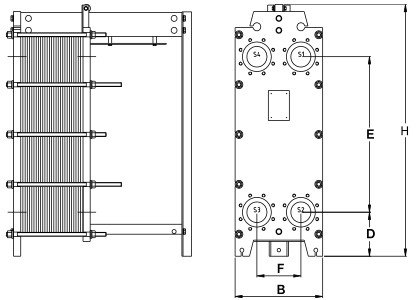

Sizes

• D – 450 mm;
• height H – 4392 mm;
• the diameter of the connection is DN – 450;
• B – 1510 mm;
• E – 3310 mm;
• F – 700 mm.
