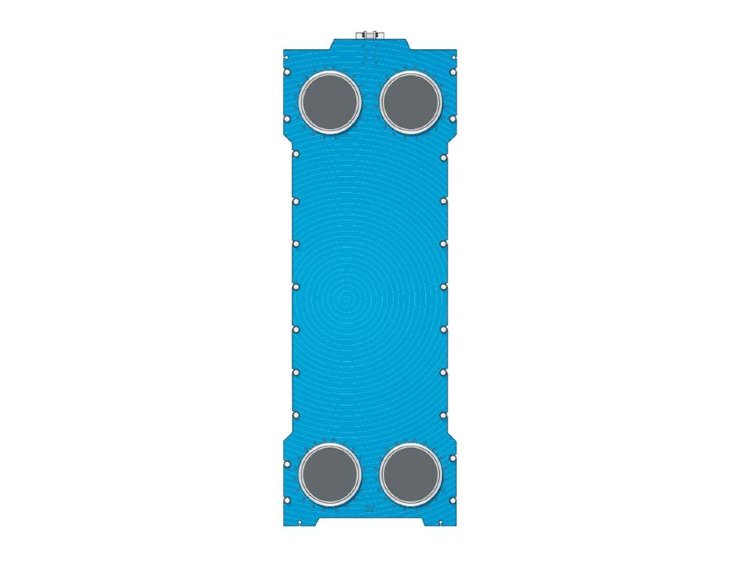

Plate heat exchanger Tranter GL-430P

Heat exchanger Tranter GL-430P It has a modular design, which consists of a package of corrugated plates. Swedish stainless steel is used for their manufacture.

The plates are mounted at an angle of 180 degrees and fixed to the support and guide consoles. The package itself is clamped by two plates: movable and fixed.

Sizes

• D – 450 mm;
• height H – 4392 mm;
• the diameter of the connection is DN – 450;
• B – 1540 mm;
• E – 3310 mm;
• F – 700 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GL-430P

• maximum operating temperature 180 °C;
• Features

  Brand

  Tranter
