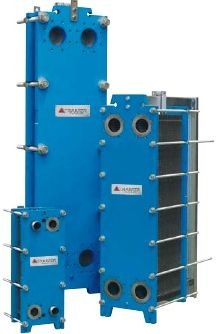

Plate heat exchanger Tranter GX-007PI

Plate heat exchanger design Tranter GX-007PI It is characterized by modularity, lightness and compactness.

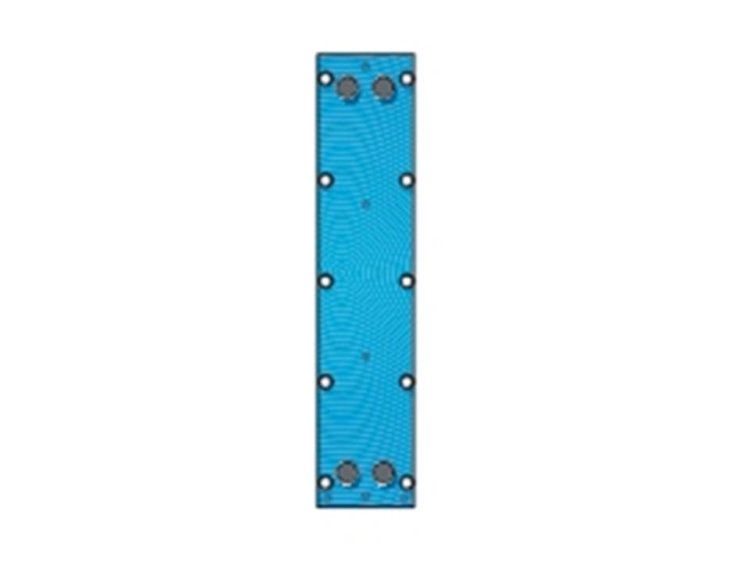

Good heat transfer is provided by Swedish stainless steel plates, which are equipped at an angle of 180 degrees. The plates are fixed to the carrier and guide consoles and sealed around the perimeter, forming a package.

The finished package is clamped between two plates: movable and fixed.

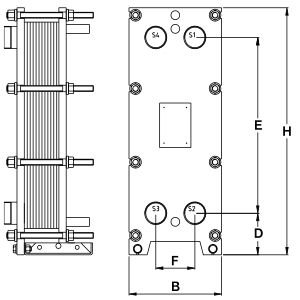

Sizes

• D – 72 mm;
• height H – 774 mm;
• The diameter of the connection is DN – 25/32;
• B – 180 mm;
• E – 640 mm;
• F – 60 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GX-007PI
