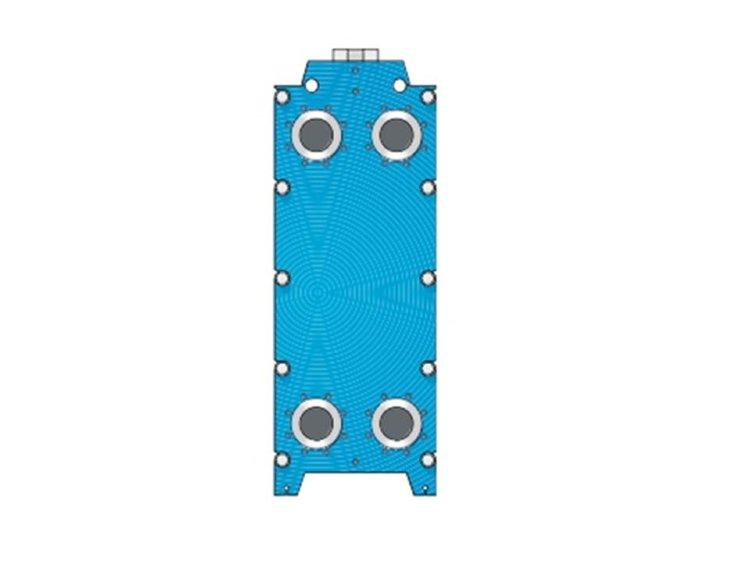

Plate heat exchanger Tranter GX-026N

Heat exchanger Tranter GX – 026N It is assembled from a package of heat exchange plates, which are firmly fixed on two consoles, namely: the carrier and the guide. As for the quality of the plates, they are made of AISI 304 or AISI 316 stainless steel with titanium coating, so that the plates can withstand external influences.

Sizes

• D – 220 mm;
• height H – 1166 mm;
• the diameter of the connection is DN – 100;
• B – 450мм;
• E – 779mm;
• F – 226 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GX – 026N

• maximum operating temperature 180 °C;
