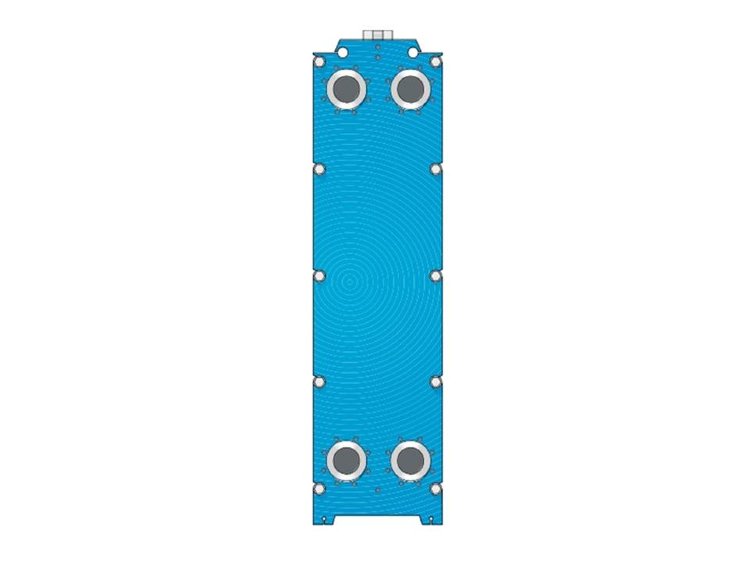

Plate heat exchanger Tranter GX-085N/P

Tranter Heat Exchanger models GX – 085N/P they are produced from a package of heat exchange plates that are firmly fixed on two consoles: a carrier and a guide. The plates for the Tranter heat exchanger are made of AISI 304 or AISI 316 stainless steel, they are distinguished by a titanium coating, so they are able to withstand external influences.

Sizes

• D – 360 mm;
• height H – 1985 mm;
• the diameter of the connection is DN – 300;
• B – 1060 mm;
• E – 1140 mm;
• F – 570 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTERGX – 085N/P

• maximum operating temperature 180 °C;
• Mac
