Plate heat exchanger Tranter GX-205N/P

Heat exchanger Tranter GX – 205N/P It is characterized by a design that ensures an effective layout of the heat exchange surface, and therefore the small dimensions of the heat exchanger. Heat exchanger plates are made of sheet steel.

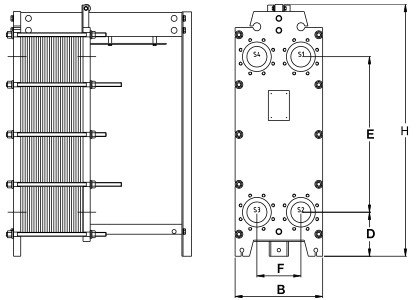

Sizes

• D – 360 mm;
• height H – 3215 mm;
• the diameter of the connection is DN – 300;
• B – 1060 mm;
• E – 2300 mm;
• F – 570 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GX – 205N/P HEAT EXCHANGER

• maximum operating temperature 180 °C;
• The maximum working pressure is 16 bar;
• the sealing materials used are Nitrile, E
