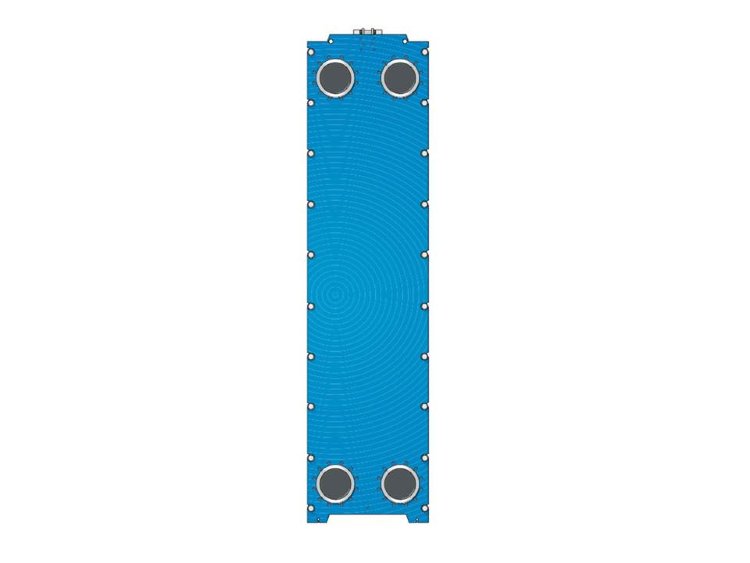

Plate heat exchanger Tranter GX-265N/P

Plate heat exchanger Tranter GX – 265N/P It is a surface-type equipment in which heat is transferred between the media: heating and heated. Heat is transferred through the metal wall.

Sizes

• D – 360 mm;
• Height H – 3795 mm;
• The diameter of the connection is DN – 300;
• B – 1060 mm;
• E – 2880 mm;
• F – 570 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GX – 265N/P HEAT EXCHANGER

• maximum operating temperature 180 °C;
• The maximum working pressure is 16 bar;
• the sealing materials used are Nitrile, EPDM, FKM, Viton;
