Plate heat exchanger Tranter GC-009 P/PI

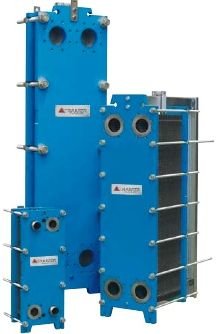

Heat exchanger Tranter GC-009 P/PI It is a collapsible plate structure, which consists of a package of corrugated plates to ensure heat transfer. The material used for their manufacture is Swedish stainless steel. GC-009 P/PI is a modular design, therefore, the package of heat exchange plates is mounted on the carrier and guide consoles with a clamp of a movable and fixed plate.

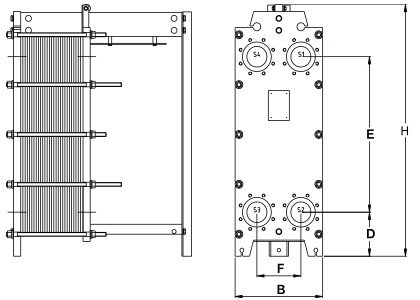

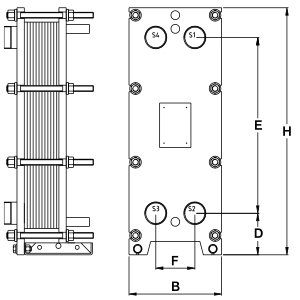

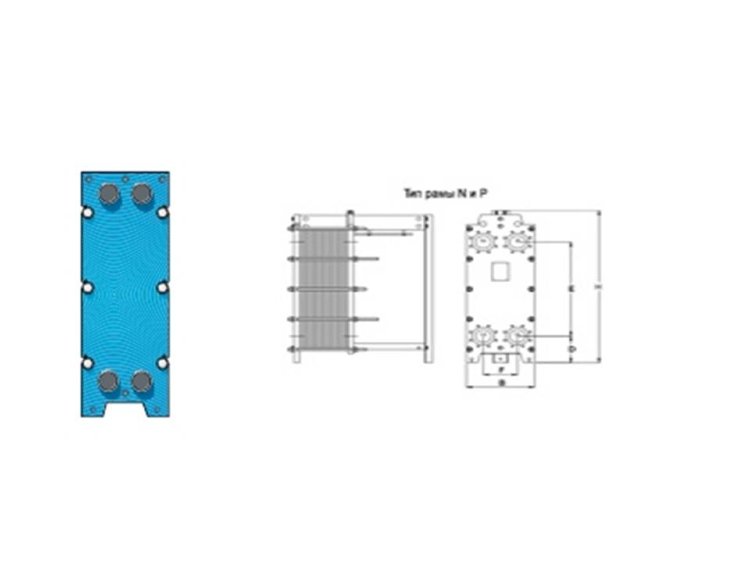

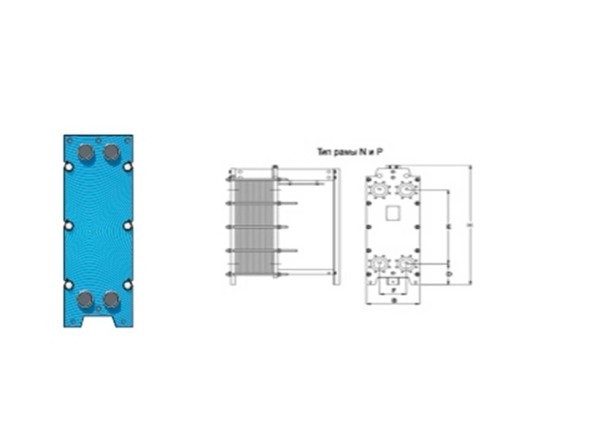

Sizes:

• D – 90 mm;
• height H – 725 mm;
• the diameter of the connection is DN – 40;
• B – 250 mm;
• E – 555 mm;
• F – 100 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GC-009 P/PI HEAT EXCHANGER

• maximum operating temperature 180 °C;
