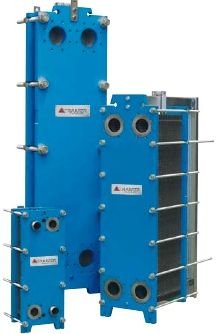

Plate heat exchanger Tranter GC-016P/PI/N

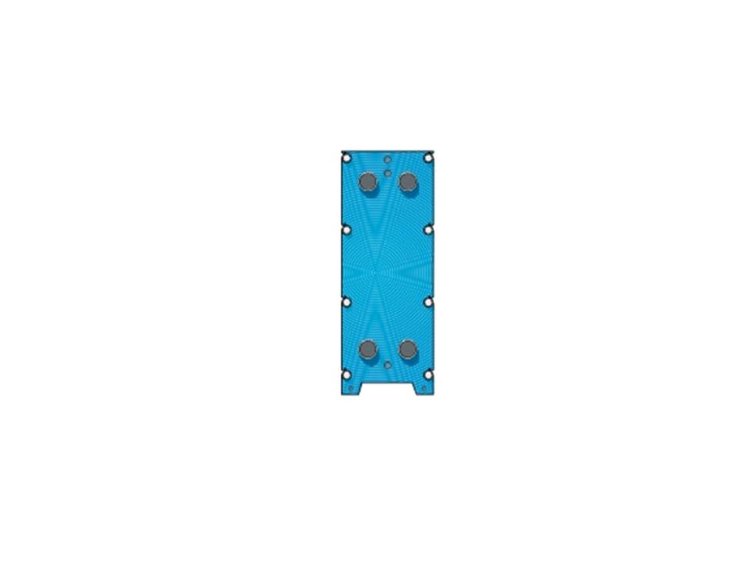

Plate heat exchanger Tranter GC-016 P/PI/N It consists of a front fixed and rear movable plates made of steel. Plates with seals are tightened between them. With the help of two guides, the plates are mounted in the appropriate position. In addition, the plates are tightened to the desired size by special coupling pins. Each of the plates is rotated 180 degrees relative to the other.

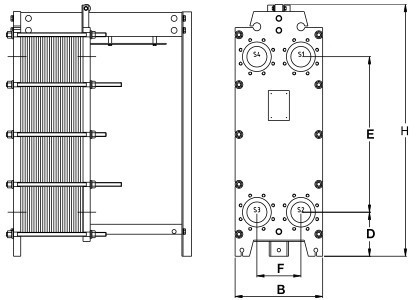

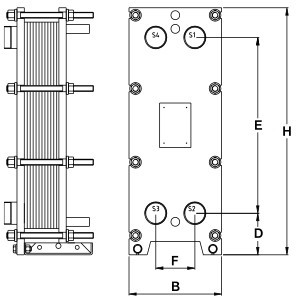

Sizes:

• D – 140 mm;
• height H – 832 mm;
• connection diameter DN – 50/65;
• B – 320 mm;
• E – 592 mm;
• F – 135 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GC-016 P/PI/N HEAT EXCHANGER

• maximum operating temperature 180 °C;
