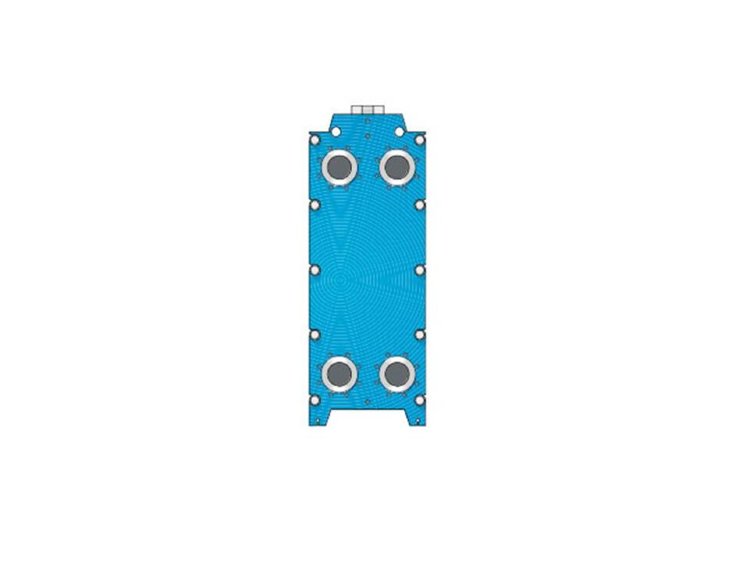

Plate heat exchanger Tranter GC-026N

Heat exchangers Tranter GC-026 N They are characterized by the presence of rubber seals, which are installed in grooves specially provided for this purpose and securely fastened with glue or clips. This mounting method provides not only a high degree of insulation, but also reliability even at high operating pressures.

The whole series of heat exchangers Tranter GC It is equipped with symmetrical plates having channels with an obtuse and an acute angle. Due to the ability to combine plates and the degree of their inclination, this equipment is configured for optimal operation in all conditions.

Sizes

• D - 220 mm;
• Height H – 1675 mm;
• The diameter of the connection is DN – 100;
• B – 450 mm;
• E – 779 mm;
• Features

  Temperature Tmax, °C

  +10 до +200°C

  Brand

  Tranter
