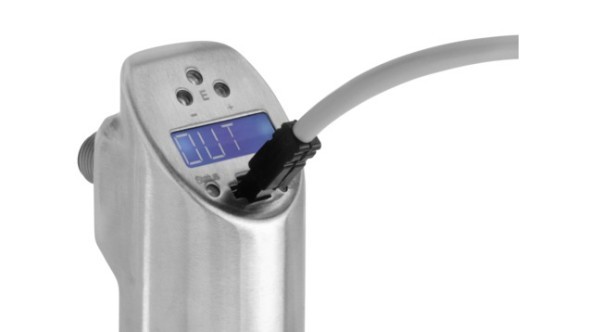

Thermophant T TTR31 Thermal Switch
Compact and cost-effective for safe process temperature control
Cost-effectiveness, optimal use of space, reliable operation, ease of installation and commissioning indicate modern process measurement technology. The temperature switch fully meets these requirements. Designed for safe measurement and control of process temperature, it can be selected between one or two switching outputs, as well as one switch output and one standardized analog output. Built-in thin-film sensors that provide vibration protection guarantee the highest operational safety.
Benefits
- Integrated switching electronics for monitoring and management of decentralized and economic processes
- High reproducibility and long-term stability
- Function management and on-site information thanks to LEDs and digital display
- Long-term stable temperature sensor made of platinum (class Pt100 A according to IEC 60751)
- High accuracy over the entire ambient temperature range and short response time
- Operation and visualization also with PC and FieldCare or ReadWin 2000 software
- DESINA-compatible
Scope of application
Temperature switch for monitoring, indication and control of process temperature in the range from -50 to 150 ° C (-58 to 302 ° F). Thermophant T TTR 31 - with threaded connections or coupling.
Electronic versions:
- One PNP switch output
- Two PNP switch outputs
- 2 x PNP switches or one PNP switch output and 4-20 mA output (active)
Thermal switch
|
The principle of measurement |
Thermal switch |
|
Characteristic /Application |
Intelligent Temperature Switch with Pt100 sensor (Class A) |
|
Additional power supply |
12 ... 30 V DC |
|
Accuracy |
-50 ... 75 ° C: <0,5 K |
|
Long-term drift |
<0,1 К / а (<0,2 ° F / a) |
|
Operating temperature range |
-50 ... 150 ° C (-58 ... 302 ° F) |
|
Technological connection |
Thread, connection with clamp |
|
Hint |
Not defined |
