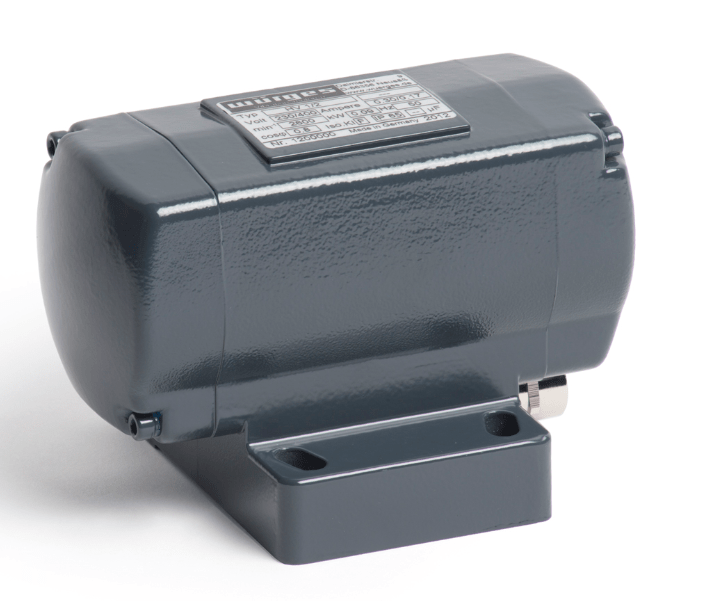

HV 1/2 Ex 82100 Pad Vibrator 3000ob/min, 3~230/400V 0.50kN 0.095kW 3.6kg
HV 1 Vibration motors with standard design
Three-phase vibration motors
The durable body is made of cast aluminum. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of centrifugal force adjustment. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
For operation from a 230 V AC network, a working capacitor with 4 UF can be ordered.
Degree of protection IP 65 · Heat resistance class F
All three-phase HV 1 motors are also available in ATEX II 3G/D T3 versions.
Features
Working moment, cmkg
1,00
Centrifugal force, kN
0,50
Power, kW:
0,1
Rotation speed, rpm
3000
Rated current, A
0,5
Power Supply, In
~ 400V AC
Weight, kg
3,6
Brand
Wuerges
