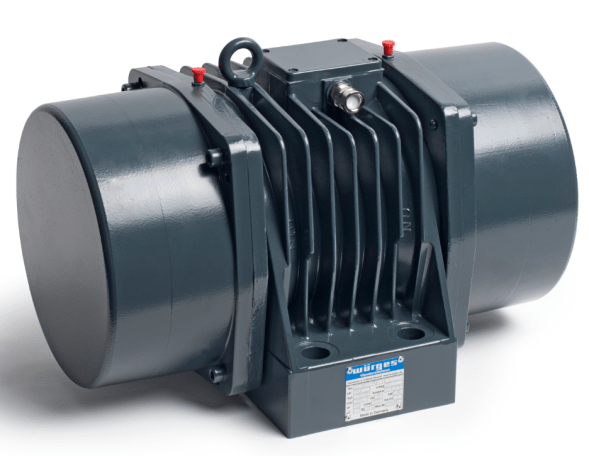

HV 85/8-400 88600 Pad Vibrator
HV 85
Vibration motors with standard design
Three-phase vibration motors
The extremely durable housing is made of high-strength, improved cast aluminum. Bearings of a special design are lubricated with a special lubricant, which will ensure long-term operation of the device. The adjustment of the centrifugal force is smooth. The vibrator can be used in continuous operation mode, taking into account the permissible current consumption.
* Exception: HV 85/2-120 with 40% cont. inclusions.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 Heat resistance class F
Features
Working moment, cmkg
397
Centrifugal force, kN
12,50
Power, kW:
0,95
Rotation speed, rpm
750
Rated current, A
5
Power Supply, In
~ 400V AC
Weight, kg
100,0
Brand
Wuerges
