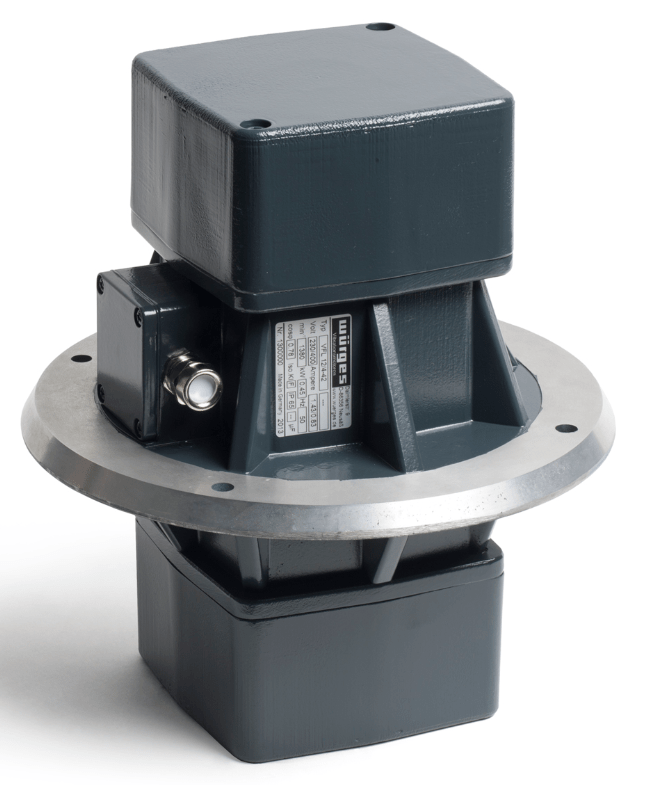

Flanged vibrator VFL 12/2 3000rpm, 3~ 230/400V 6.00kN 0.650kW 17.2kg
Working moment, cmkg
12,00
Centrifugal force, kN
6,00
Power, kW:
0,65
Rotation speed, rpm
3000
Pre-order
$0
Description
Features
Reviews
VFL 12
Three-phase vibration motor for flange mounting
Three-phase vibration motor
The devices are used as a central drive in drum screens, vibration equipment, etc.
Double-sided centrifugal loads can be displaced by 90° or 180° relative to each other. As a result, rotational and rocking movements are formed.
The sturdy body is made of high-strength, improved aluminum, cast in coquille. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of adjustment of the centrifugal force using unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply engines designed for special applications
Features
Working moment, cmkg
12,00
Centrifugal force, kN
6,00
Power, kW:
0,65
Rotation speed, rpm
3000
Rated current, A
5
Power Supply, In
~ 400V AC
Weight, kg
17,2
Brand
Wuerges
