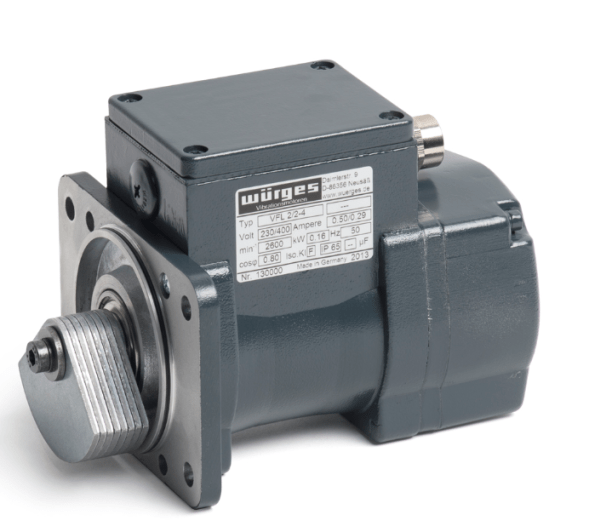

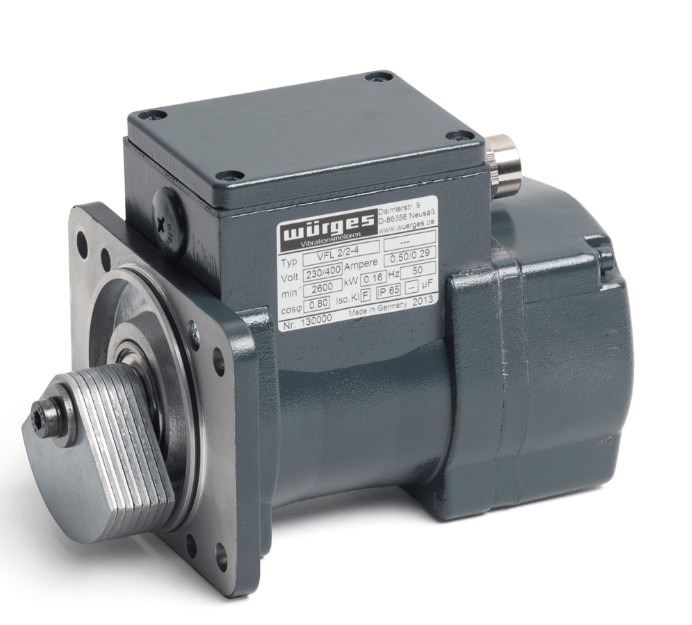

Information about the VFL 2/2 flange vibrator
VFL 2
Three-phase vibration motor for flange mounting
Three-phase vibration motor
The sturdy body is made of high-strength, improved aluminum, cast in coquille. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of adjustment of the centrifugal force using unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 54 Heat resistance class F
Features
Working moment, cmkg
1,9
Centrifugal force, kN
0,90
Power, kW:
0,16
Rotation speed, rpm
3000
Rated current, A
0,5
Power Supply, In
~ 400V AC
Weight, kg
5,2
Brand
Wuerges
