Main application areas
- Raw water
- Water
- Water disposal
- Water treatment
- Water supply
- Pumps used as turbines
- Disinfection
- Desalination of seawater
- Equipment for buildings
- Irrigation
- Sprinkling irrigation, irrigation
- Cooling water and condensate
- Pressure increase
- Industry and technological process
- Industrial power plants
- Water distribution
- System solutions, rehabilitation
- Water transportation
- Chemistry
- Public power plants
- Energy industry

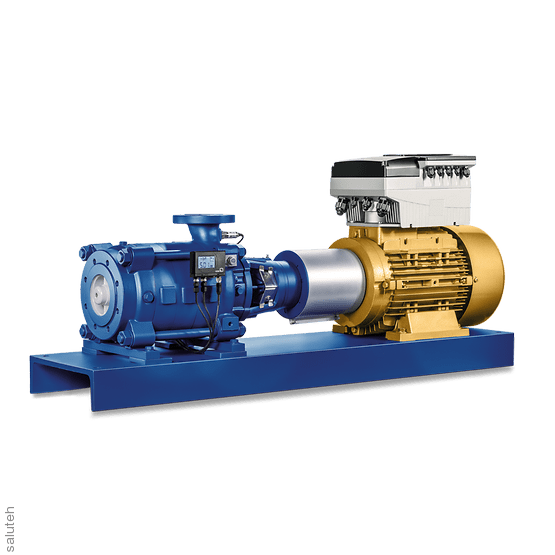

Horizontal multistage centrifugal pump of sectional type, with spacer coupling or monoblock, with axial or radial suction nozzle, cast radial impellers. Scope of application: for general and drinking water supply, in industry, for pressure boosting, irrigation, power plants, heating systems, filtration, fire extinguishing, hyperfiltration, washing, snow cannons, for pumping feed water, warm water, hot water, condensate, distillate, solvents, lubricants, fuel, etc. Code: MTC.
Overview of technical data
| Q (50Hz) | 110.0 – 1500.0 (m³/h) |
| H (50Hz) | 110.0 – 400.0 (m) |
| Type of bearing | rolling bearing |
| Separation of the body | transverse (radial) |
| Type of impeller material (according to the standard | CC480K-GS, GJL 250 |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor, turbine , internal combustion engine |
| Drive motor voltage | low voltage |
| 1. type of impeller | closed /radial |
| Number of impeller inputs | single-threaded |
| Other types of impeller | closed /radial |
| Impeller material (according to E standard | CC480K-GS, GJL 250 |
| Type of installation | base plate |
| Type of coupling | directly |
| Type of lubricant | grease/oil lubrication/lubrication of the pumped fluid |
| Pressure housing material (according to the standard | GJS 400 |
| Max. permissible liquid temperature | 60 (°C) |
| The position of the nozzle | variable |
| Maximum operating pressure | PN 16, PN 40 |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021+QT |
| The material of the stage body (according to the E standard | GJS 400 |
| The material of the suction body (according to the standard | GJS 400 |
| Suction characteristics | non-self-priming |
| Type of connection | the flange |
| Type of pressure housing | housing with an annular camera |
| Type of stage housing | the stage body without a guide device |
| Type of suction housing | housing with an annular camera |
| Housing material (according to EN standard) | GJS 400 |
| eClass | 36410100, 36410000, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal, stuffing box |
| Main application areas | Water supply |
| Housing material | cast iron with spherical graphite |
| Max. working pressure from the pressure sides | 40 (bar) |
| Max. drive power | 1500 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 1750 (1/min) |
| Standard size | DN 200, DN 250 |
Features
Brand
KSB
