Description
Features
Reviews

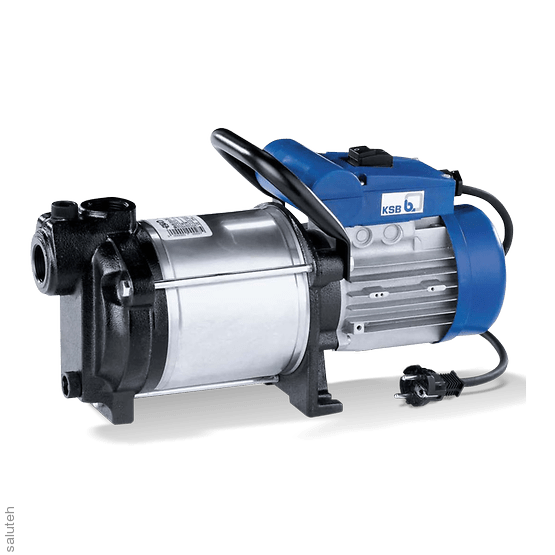

Centrifugal multistage self-priming pump in monoblock design; with the possibility of completing the Controlmatic E for use as an automatic water supply device. Scope of application: for water supply and disposal of rainwater, sprinkling, irrigation and washing plants.
Overview of technical data
| Q (50Hz) | 0.0 – 8.0 (m³/h) |
| H (50Hz) | 15.0 – 54.0 (m) |
| Type of bearing | ball bearing |
| Type of impeller material (according to the standard | POLYPROPYLENE, PP |
| Drive | electric motor |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 380/415 In 3~ |
| Impeller material (according to E standard | NORYL |
| Type of coupling | without |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 50 (°C) |
| The position of the nozzle | sideways-up |
| Maximum operating pressure | PN 10 (EXCEPT SIZE 34) |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021, CHROME STEEL, ACIER |
| Suction characteristics | self-priming |
| Acceptable for drinking water | yes |
| Type of impeller | radial, closed/radial, closed |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | JL1040 |
| eClass | 36410000, 36410100, 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Engineering equipment of buildings, Water supply |
| Housing material | grey cast iron, stainless steel |
| Max. working pressure from the pressure sides | 10 (bar) |
| Max. drive power | 1,30 (kW) |
| Type of installation | stationary, portable |
| Max. rotation speed | 2800 (1/min) |
Features
Brand
KSB
