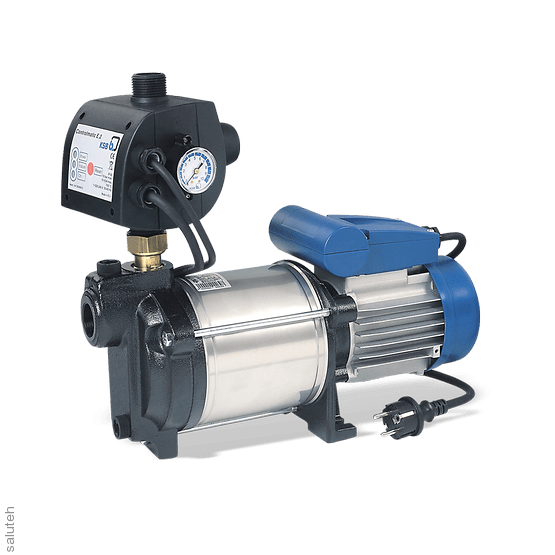

Multistage self-priming centrifugal pump in a monoblock version of the Multi-Eco type, with a connecting cable and plug, as well as an automatic Controlmatic E switch to control the on and off of the pump when opening and closing taps for consumers and to protect the pump from dry running. Scope of application: in single and semi-detached houses, in agricultural production of sprinkler and irrigation devices.
Overview of technical data
| Q (50Hz) | 0.0 – 8.0 (m³/h) |
| H (50Hz) | 15.0 – 54.0 (m) |
| Type of bearing | ball bearing |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor, turbine |
| Drive motor voltage | low voltage |
| 1. type of impeller | closed /radial |
| Other types of impeller | closed |
| Impeller material (according to E standard | NORYL |
| Type of installation | block |
| Type of coupling | directly |
| Type of lubricant | lubrication of the pumped medium |
| Pressure housing material (according to the standard | JL 1040, ANTIKORR.-COAT |
| Max. permissible liquid temperature | 50 (°C) |
| The position of the nozzle | to the side-to the side |
| Max. number of pumps | 1 |
| Maximum operating pressure | PN 10 (EXCEPT SIZE 34) |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021, ACIER, CHROME STEEL |
| The material of the stage body (according to the E standard | NORYL |
| The material of the suction body (according to the standard | JL 1040, ANTIKORR.-COAT |
| Suction characteristics | self-priming |
| Acceptable for drinking water | yes |
| Pressure when switching on PE | 2,60 (bar) |
| Type of connection | carving |
| Type of stage housing | stage body with guide device |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | JL 1040, ANTIKORR.-BESCHICHTET, JL 1040, JL1040 |
| eClass | 36410101, 36410100, 36410000 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Water supply, Engineering equipment of buildings |
| Housing material | stainless steel, grey cast iron |
| Max. working pressure from the pressure sides | 10 (bar) |
| Max. drive power | 1,30 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 2800 (1/min) |
| Connection type | indirect and direct |
