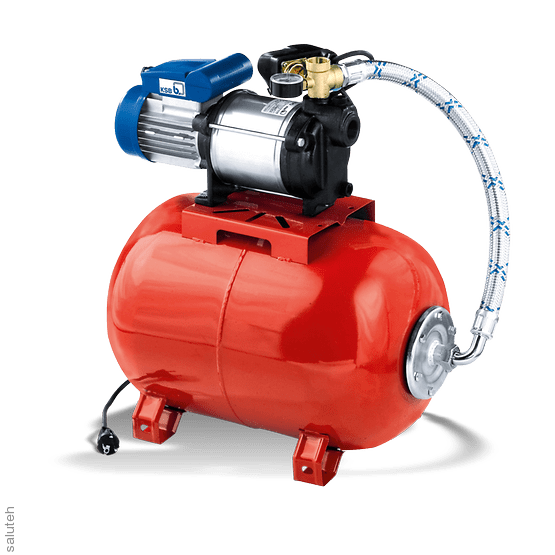

Multistage self-priming centrifugal pump in a monoblock Multi-Eco design, including a pressure vessel with a replaceable membrane, approved for use with drinking water, with a capacity of 20 or 50 liters, a pressure switch for automatic pump operation, as well as a 1.5 m long connecting cable with a plug. Scope of application: in single and semi-detached houses, in agricultural production, sprinkler and watering devices.
Overview of technical data
| Q (50Hz) | 0.0 – 8.0 (m³/h) |
| H (50Hz) | 15.0 – 54.0 (m) |
| Type of bearing | ball bearing |
| Type of impeller material (according to the standard | PP |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| 1. type of impeller | closed /radial |
| Other types of impeller | closed |
| Impeller material (according to E standard | NORYL |
| Type of installation | block |
| Type of coupling | directly, without |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 50 (°C) |
| The position of the nozzle | sideways-up |
| Max. number of pumps | 1 |
| Maximum operating pressure | PN 3,9 |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | 1.4021, ACIER, CHROME STEEL |
| The material of the stage body (according to the E standard | JL1040, NORYL |
| The material of the suction body (according to the standard | JL 1040 |
| Suction characteristics | self-priming |
| Acceptable for drinking water | yes |
| Type of connection | carving |
| Type of stage housing | stage body with guide device |
| Type of suction housing | 00, Spiral casing |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | JL 104, JL 1040, JL1040 |
| eClass | 36410101, 36410100, 36410000 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Engineering equipment of buildings, Water supply |
| Housing material | stainless steel, grey cast iron |
| Max. working pressure from the pressure sides | 3,9 (bar) |
| Max. drive power | 1,30 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 2800 (1/min) |
| Connection type | indirect and direct |
