Main application areas
- Water supply
- Equipment for buildings
- Swimming pool equipment

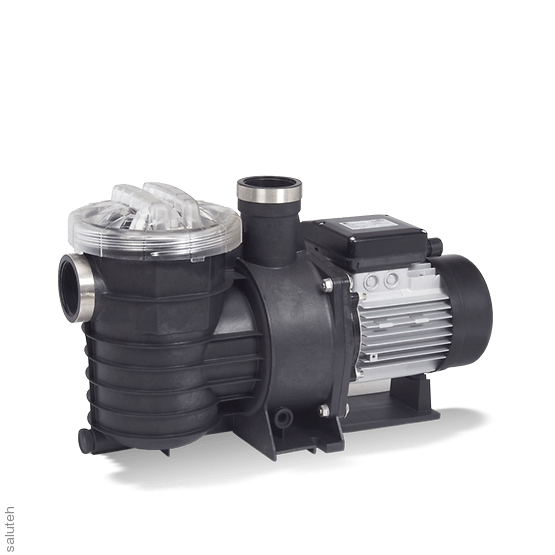

Circulation pump for filtration systems of swimming pools. Scope of application: for pumping clean or slightly polluted water, swimming pool water with a chlorine content of up to 0.3%, ozone-treated swimming pool water with a salt content of up to 7%.
Overview of technical data
| Q (50Hz) | 0.0 – 36.0 (m³/h) |
| H (50Hz) | 3.0 – 21.0 (m) |
| Type of bearing | ball bearing |
| Drive | electric motor |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 400 V, 3~ |
| Impeller material (according to E standard | NORYL |
| Type of installation | block |
| Type of coupling | directly, without |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 35 (°C) |
| The position of the nozzle | variable |
| Maximum operating pressure | PN 2,5 |
| Installation of the unit | "dry" installation |
| Shaft material (according to EN standard) | CHROME STEEL, 1.4404 |
| Suction characteristics | non-self-priming |
| Type of impeller | private |
| Type of connection | carving |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | PP |
| eClass | 36410101 |
| Installation position | horizontal |
| Type of shaft seal | mechanical seal |
| Main application areas | Engineering equipment of buildings |
| Housing material | artificial material |
| Max. working pressure from the pressure sides | 2,5 (bar) |
| Max. drive power | 2,20 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 2900 (1/min) |
Features
Brand
KSB
