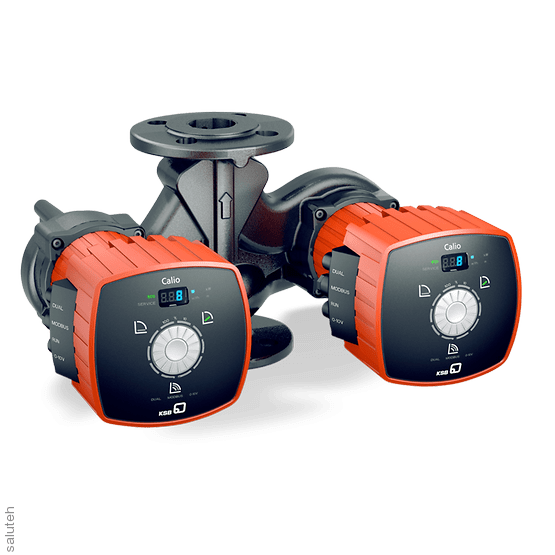

A highly efficient circulation pump with a smoothly adjustable differential pressure controller and an IR interface for remote control.
Overview of technical data
| Q (50Hz) | 0.0 – 65.0 (m³/h) |
| H (50Hz) | 0.0 – 14.0 (m) |
| Type of bearing | slide underpin |
| Drive | electric motor |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 230 V, 1~ |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | EN-GJL-200, POLYAMIDE, POLYSULFONE |
| Type of installation | execution of the "in-line" type |
| Type of coupling | without |
| Type of lubricant | lubrication of the pumped medium |
| Max. permissible liquid temperature | 110 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Maximum operating pressure | 10 |
| Installation of the unit | "dry" installation |
| Built-in control system | yes |
| Shaft material (according to EN standard) | 1.4034, CERAMICS |
| Housing type | spiral body |
| Type of connection | flange /external thread |
| Housing material (according to EN standard) | EN-GJL-200 RP 1 RP 1 1/4, EN-GJL-250 >32 |
| eClass | 00000000 |
| Installation position | horizontal or vertical |
| Type of shaft seal | without |
| Main application areas | Engineering equipment of buildings |
| Max. working pressure from the pressure sides | 10 (bar) |
| Type of installation | stationary |
| Max. rotation speed | 3700 |
