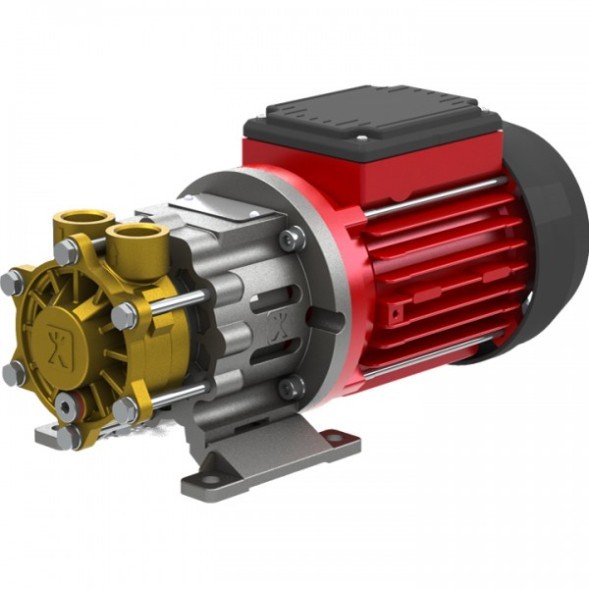

Centrifugal turbine pumps of the series EY-2251-MK from the company Pumping bacon they create high liquid supply pressure in applications with low volume flow rates. Block mounting design, horizontal orientation of the installation. The nozzles are located radially upwards with respect to the axis of the motor.
Stainless steel grade 1.4308 is used as the structural materials of the pump housing, the shaft is made of ceramic. The impeller material is brass or stainless steel with a composite coating based on silicon carbide, and polyesteresterketone is also used. Three-phase electric motors of high energy efficiency class are used for the drive, with surface cooling and protection against penetration of water and dust.
Pumping liquids: water, solutions, oils.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water supply, water treatment, cooling installations and for other technological processes.
Technical characteristics of Speck Pumpen turbine pumps of the EY-2251-MK series
- Volume consumption: up to 37 l/min;
- Discharge height: up to 45 m;
- Liquid temperature: up to 140 °C;
- Installation: horizontal.
To buy Speck Pumpen turbine pumps of the EY-2251-MK series, you can find out the price and more information about the products by contacting our specialists.
