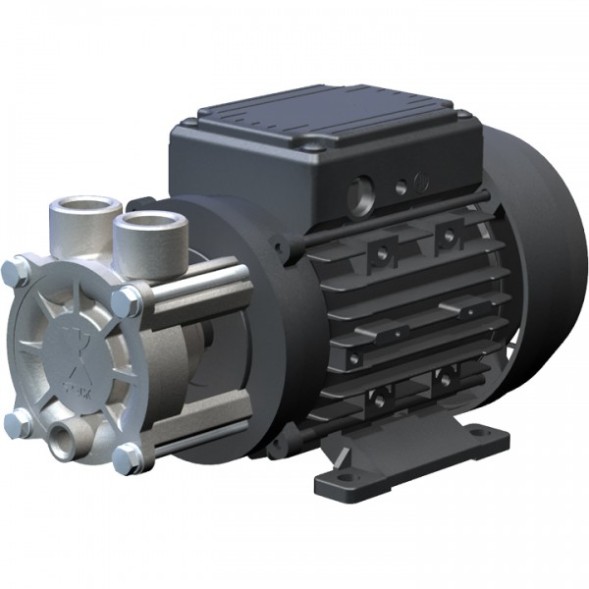

Centrifugal turbine pumps of the series NPY-2051 from the company Pumping bacon they create high liquid supply pressure in applications with low volume flow rates. The most compact architecture of construction, block mounting design, horizontal orientation of the installation. The suction and supply pipes are located radially upwards with respect to the axis of the motor, and the suction pipe can also be made in a coaxial position.
Stainless steel, polyphenylene sulfide or brass are used as structural materials of the pump, the shaft is made of stainless steel grade 1.4122 and sealed with a mechanical seal (carbon/silicon carbide/fluoro rubber). Three-phase electric motors of high energy efficiency class are used for the drive, with surface cooling and protection against penetration of water and dust.
Pumping liquids: water, solutions, oil.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water supply, water treatment, cooling installations and for other technological processes.
Technical characteristics of Speck Pumpen turbine pumps of the NPY-2051 series
- Volume consumption: up to 30 l/min;
- Discharge height: up to 52 m;
- Liquid temperature: water - up to 140 °C, oil - up to 160 °C;
- Installation: horizontal.
You can buy Speck Pumpen turbine pumps of the NPY-2051 series, find out the price and more information about the products by contacting our specialists.
