Aeration jet U025

Aeration jets U025 and U060 They are the most economical solution to ensure the flow of material from silos or bunkers. Aeration jets The U025/U060 can be easily installed or upgraded in existing installations.

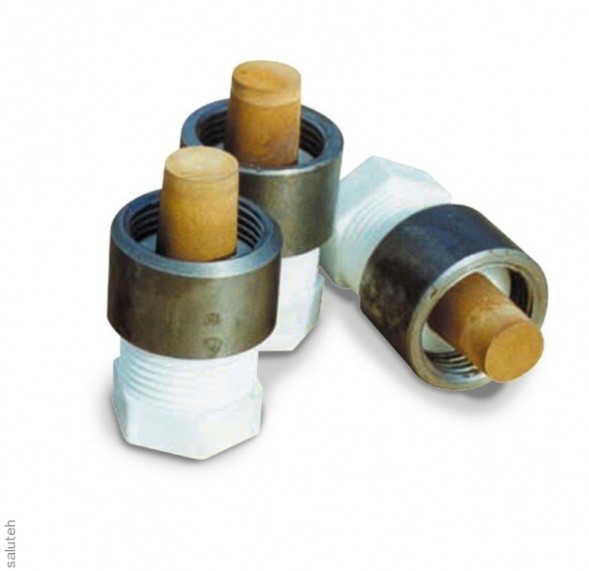

The housing made of structural polymer with a sintered nozzle (brass on U025, polyethylene on U060) must be screwed into a steel sleeve (included), which must first be welded to the outer part of the silo, hopper or dispenser cone. After that, it is necessary to connect the jets to the compressed air supply system.

Aeration jets U025 They are used to work with fine powder materials such as cement, lime and similar powders at an operating pressure of 0.2 bar. The operating pressure of the U060 model is 1 bar.

• Duty Cycle: Continuous
• Working pressure: 0.2bar to 1 bar (2.9 Pa*inch to 14 Pa*inch)
• Pneumatic circuit: Filter + control valve
• The temperature is ok
