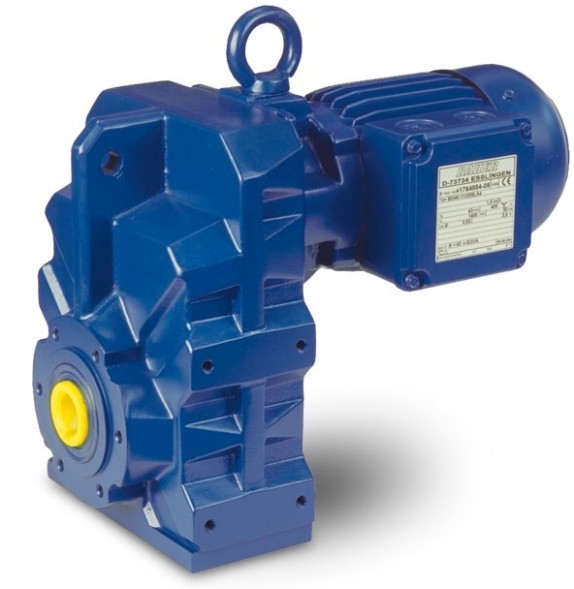

Reliable and economical parallel gear motors with cylindrical gears series BF from the company Farmer They have gained unprecedented popularity due to their outstanding performance characteristics. They are fully optimized for operation with a frequency converter, have a standardized design and have exceptional flexibility with regard to mounting solutions, which greatly facilitates integration into drive systems for a wide variety of production areas.
The compact design makes it possible to place the drive advantageously in conditions of limited space. The housing is completely sealed against dust ingress, protected from splashes and water jets, so this series can be freely used outdoors as standard. The frame material is aluminum (cast), can also be made of cast iron on request. The transmission mechanics are made of hardened high-strength steel and are highly resistant to loads. Connection boxes with connection via CAGE CLAMP clips. Efficient heat dissipation, silent operation.
The model range is formed by ten standard sizes and covers a wide range of power and speed parameters for the selection of drives with the necessary technical data, two-stage and three-stage versions.
Available to order all energy efficiency classes for embedded motors, explosion-proof versions of the ATEX version for zones 1, 2, 21 and 22, combinations with an EtaK2.0 inverter (up to 7.5 kW), various types of brake blocks, and other accessories according to the required specifications.
Technical characteristics of Bauer BF series parallel shaft gear motors
- Gear ratio: 5,22 - 592,8;
- Nominal torque: 90 - 18500 Nm;
- Motor power: 0.03 - 75 kW;
- Number of steps: 2, 3;
- Speed (output): 0.2 - 190 rpm;
- The degree of protection of the case: IP65 (IP66 on request);
- Mounting design: on request.
Standard sizes of Bauer BF series gearboxes
BF06, BF10, BF20, BF30, BF40, BF50, BF60, BF70, BF80, BF90
You can buy Bauer BF series parallel gear motors, find out the price and more information about the product by contacting our specialists.
