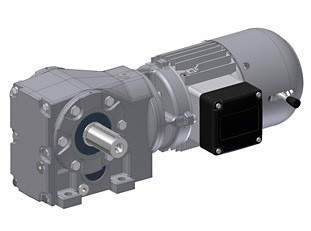

Angular conical-cylindrical gearboxes Sky and their motorized versions are available in various versions. All of them have a high-strength cast iron construction with low vibration characteristics, designed for continuous operation. The gears are hardened and carefully ground for the most efficient and quiet grip. To protect against dust or oil leakage, the shaft assembly is sealed with special inserts.
A wide range of possible combinations and a wide range of operating parameters, high flexibility and adaptability make this line a universal solution for many industrial applications. And there are always options for individual execution or adjustment of technical or design characteristics for a specific application.
The design assumes the possibility of mounting on supports or a flange connection, as well as a combination of them on request. Of the optional equipment, electromagnetic braking systems, feedback sensors and others are available to order.
Technical characteristics of Himmel conical-cylindrical gearboxes
- Rated torque: 200 - 25000 Nm;
- Engine power: 0.12 - 160 kW;
- Number of steps: 2, 3;
- Speed: 0.16 - 155 rpm;
- Reduction coefficient: 9,09 - 10042;
- Overall size: 30 - 200.
Design features of the standard sizes of the series of conical-cylindrical gearboxes and gear motors from Himmel:
- two- and three-stage gear motors of standard sizes K... (on legs); KF... (flange mounting); KC...(flange mounting with additional support and solid shaft); KA (size 200); KAZ...(with centering cover); KAD... (with jet rod); KAF... (flange connection); KAC... (with additional support); KAS... (coupling); KADS... (coupling + jet rod)
- double gear motors of standard sizes K... (on legs); KF...D/Z (flange mounting); KA... D/Z; KAD... D/Z (with jet rod); KAF... D/Z (flange connection); KAS... D/Z (coupling); KADS... D/Z (coupling + jet rod)
- two- and three-stage gearboxes of standard sizes K...A (on legs); KF...A (flange mounting); KA... A; KAD... A (with jet rod); KAF... A (flange connection); KAS... A (coupling); KADS... A (coupling + jet rod)
- double gearboxes of standard sizes K...D/Z...A (on legs); KF...D/Z...A (flange mounting); KA... D/Z...A; KAD... D/Z...A (with a jet rod); KAF... D/Z...A (flange connection); KAS... D/Z...A (coupling); KADS... D/Z...A (coupling + jet rod)
- two- and three-stage gearboxes with flange for standard motor sizes K...K (on legs); KF...K (flange mounting); KA... K; KAD... K (with jet rod); KAF... K (flange connection); KAS... K (coupling); KADS... K (coupling + jet bar)
- double flange gearboxes for standard motor sizes K...D/Z...K (on legs); KF...D/Z...K (flange mounting); KA... D/Z...K; KAD... D/Z...K (with jet rod); KAF... D/Z...K (flange connection); KAS... D/Z...K (coupling); KADS... D/Z...K (coupling + jet rod)
- special series with adapters for IEC motors (F...01 K4) or servomotors (F...01 KQ), as well as the "piggy back" design (F...01 P)
You can buy conical-cylindrical gearboxes and Himmel gear motors, find out the price and more information about the product by contacting our specialists.
