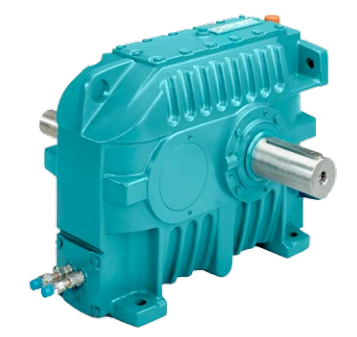

A new line of high-performance single-stage gearboxes Hansen P4 specially designed for powerful applications that do not require large values of angular velocity reduction coefficients of the drive, in particular for pumps, compressors, papermaking plants, etc. The high efficiency of this series is perfectly combined with reliability, noiselessness and ease of operation.
The product range is divided into nine standard sizes for standard and heavy-duty applications. The flexibility of the offers is provided by various variations in the center distance, and individual changes in gear ratios are also available within acceptable values. The housing made of gray pearlitic cast iron has a monolithic structure, tapered roller bearings are installed in the support units, a revolutionary Oil-Lock sealing system has been introduced for ease of maintenance, and protection against dust and moisture penetration into the box has been improved.
Horizontal and vertical mounting position, optional retrofitting with cooling systems (fans, cooling circuits, oil heat exchangers), temperature data monitoring sensors, vibration.
Technical characteristics of Hansen P4 single-stage parallel shaft gearboxes
- The torque: 4519 - 170,000 Nm;
- Gear ratio: 1,2 - 5,6;
- Number of gears: 1;
- Motor power: 270 - 10500 kW;
- Operating speed range (at the inlet): 750 - 1800 rpm.
Standard sizes of Hansen P4 gearboxes
Standard: QHPC1, QHPD1, QHPE1, QHPF1, QHPG1, QHPG1T
for heavy industry: QHPH1T, QHPJ1T, QHPK1T
To buy Hansen P4 single-stage parallel shaft gearboxes, you can find out the price and more information about the product by contacting our specialists.
