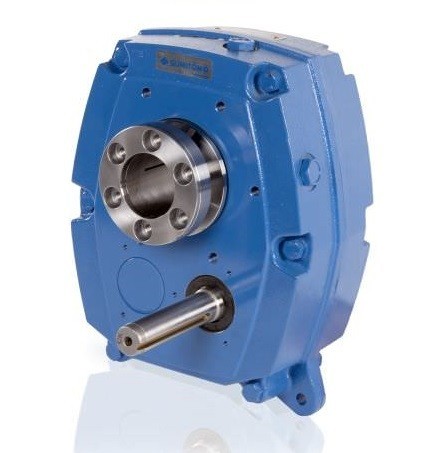

Cylindrical gearboxes with parallel shafts of the HSM series productions Sumitomo They are designed in such a way that they can be easily and quickly installed on the shaft of the drive unit through a special Taper-Grip sleeve (pinless connection). The high-speed shaft to strengthen the support unit is equipped with roller bearings, which significantly increases resistance to high levels of loads and increases service life.
Robust grey cast iron housing construction and ultra-compact design. The gears have a wide profile with a pressure angle of 25 degrees, which allows for high torque values. The high power density and high handling capacity make them an ideal offer for operation as part of conveyor systems, conveyors, pulp and paper machinery, mining developments, agricultural equipment, etc.
Technical characteristics of Sumitomo HSM series parallel shaft gearboxes
- The torque: 256 - 44000 Nm;
- Gear ratio: 5, 13, 20, 25;
- Number of gears: 1, 2;
- Motor power: 0.18 - 280 kW.
Standard sizes of Sumitomo HSM gearboxes
Type of gearbox | Max. moment, Nm | Transmission ratio |
015 | 277 | 5 /13 /20 |
103 | 519 | 5 /13 /20 /25 |
107 | 813 | 5 /13 /20 /25 |
115 | 1276 | 5 /13 /20 /25 |
203 | 1870 | 5 /13 /20 /25 |
207 | 3235 | 5 /13 /20 /25 |
215 | 4645 | 13 /20 /25 |
307 | 7139 | 5 /13 /20 /25 |
315 | 9706 | 5 /13 /20 /25 |
407 | 12778 | 5 /13 /20 /25 |
415 | 18120 | 13 /20 /25 |
507 | 25254 | 13 /20 /25 |
608 | 44051 | 13 /20 /25 |
You can buy Sumitomo HSM series parallel shaft gearboxes, find out the price and more information about the product by contacting our specialists.
