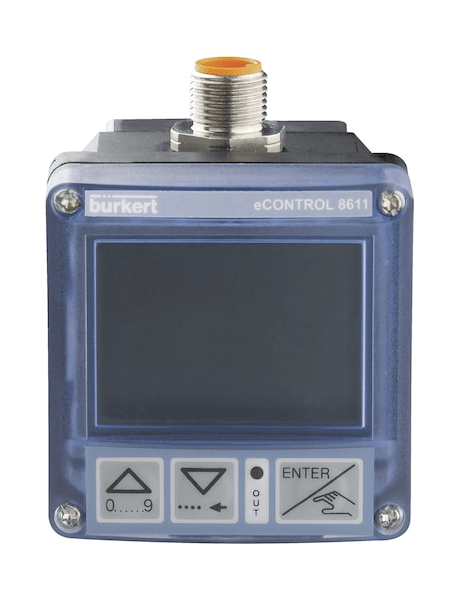

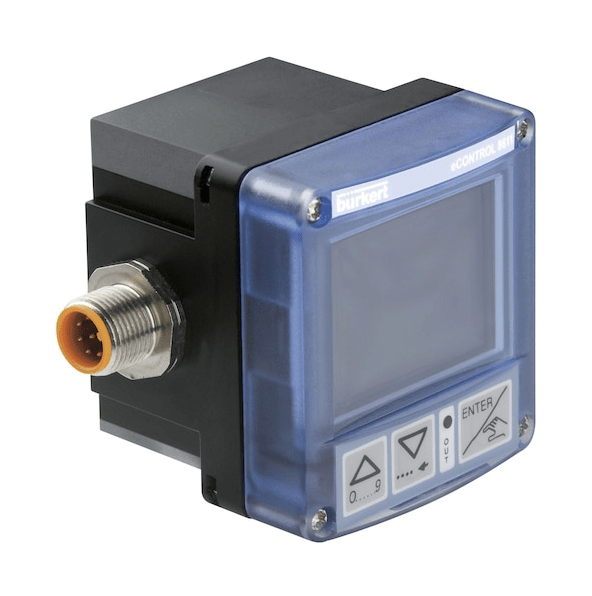

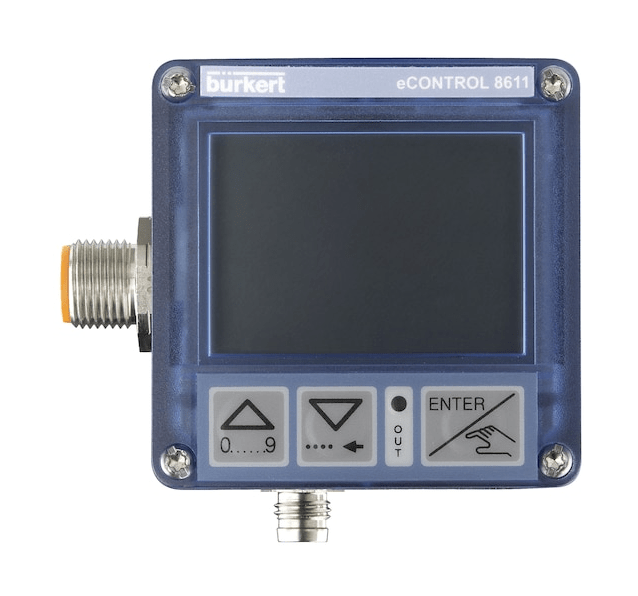

Universal regulator (eControl) for regulating the flow, pressure, level or temperature of liquids (177091)

The universal regulator Type 8611 is ideal for use in compact control systems due to its compact design. It is compatible and tested with all Burkert proportional valves and sensors, and can also be used with any control valves from other manufacturers via a standard signal (output 4-20 mA, 0-10 V or PWM). The process controller/position indicator is equipped with numerous additional functions. Through one of the 3 analog inputs, it is possible to read the actual value of the process parameter in the form of a standard signal (4-20 mA /0-10 V), a temperature meter signal or a frequency signal. The set value of the process can be entered using a standard current or voltage signal or using the keyboard. Specifically for temperature control, it is possible to organize a cascade structure with concomitant flow control. Thanks to the control function of proportional control valves and process valves, a wide variety of flow control tasks can be solved for both liquid and gaseous media.
