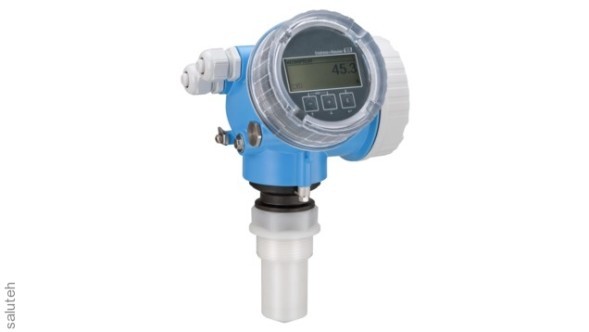

Advanced Micropilot FMR50-AAACCABRXZG+AIPB

Micropilot FMR50 - the best choice for standard applications in tanks and storages, as well as in the utility industries. Level gauge Micropilot FMR50It is used for continuous non-contact level measurement of liquids, pastes and pulps. The measurement process is not affected by changes in the medium, temperature, or the presence of gas or steam layers.

Specifications:

Principle of measurement	Radar measurement principle
Specifications/Application	Non-contact radar level gauge for liquid products. Horn antenna for simple applications.
Additional information	Functional safety SIL 2(IEC 61508) Multi-Echo Tracking Echo Processing Function HistoROM Data Storage Module
Food /Communication	2x-wire connection diagram (HART /PROFIBUS PA/FOUNDATION Fieldbus) 4-wire connection diagram (HART)
Frequency	~26 GHz
Error rate	+/- 2 mm
Ambient temperature	-40...+80 °C
Operating temperature	-40...+130 °C
Operating pressure abs. /max. overpressure limit	The vacuum...3 bar
Wetted parts	PVDF, PTFE, Viton, PP, PBT
Joining the process	Threaded: G1 1/2, MNPT1 1/2 Flanged: UNI DN80...DN150 (3"...6")
Max. measurement value	Standard: 30 m (98 ft) With enhanced dynamics: 40 m (131 ft)
Exit	4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus
Certificates/Standards	ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, KC
Safety approvals	Overfill prevention WHG SIL
Options	Local display, Custom parameterization Silicone and Grease Cleaning (PWIS)
Application range	The maximum measurement range depends on the shape of the tank and/or the application area: The ammonia gas phase: FMR54 in the sedative tube Intensive sediment formation: FMR54 with compressed air purge function Low DP value: FMR51 Resistance of PTFE only: FMR52 Measurement in the commercial accounting mode: FMR5xx
