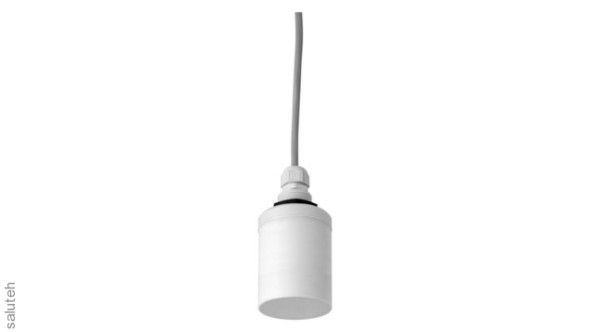

Prosonic S FDU91-LG2AA Level Gauge

Prosonic S Ultrasonic Level Gauge FDU91 FDU91-RG2AA

Ultrasound sensor FDU91 Designed for continuous, non-contact and maintenance-free level measurement of liquids, pastes, powdered and coarse-grained bulk materials. It is also suitable for flow measurement in open channels and measuring weirs. The measurement is not affected by the dielectric constant, density or humidity, as well as the formation of sediment due to the self-cleaning mechanism of the sensors. Suitable for hazardous areas. The maximum measuring range in liquids is 10 m, in bulk products 5 m.

Advantages

• Built-in temperature sensor to correct the propagation time of the signal. Accurate measurements are possible even under conditions of temperature change
• The sensor has a sealed polyvinyldenafluoride coating that provides maximum resistance to chemical influences
• Suitable for harsh operating conditions due to the possibility of installation separately from the converter (at a distance of up to 300 m)
