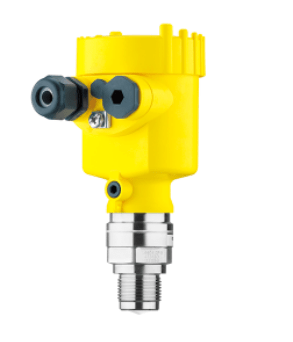

Urovnemer VEGAPULS 64 PS64.AXTTCGHXKTXXX

The VEGAPULS 64 level gauge is designed for use in storage tanks, dispensers and process tanks in various measurement conditions. The device with different versions of the antenna system and with different equipment is applicable in almost any conditions and processes.


Type of connection	Carving	The flange	Hygienic fittings	Plastic antenna
Size /Directional pattern	G¾, ¾ NPT /14° G1½, 1½ NPT /7°	DN 50, 2" /6° DN 80, 3" /3°	≤6°	3°
Operating temperature	-40 … +200 °C	-40 … +200 °C	-40 … +200 °C	-40 … +80 °C
Operating pressure	-1 … +20 bar	-1 … +20 bar	-1 … +16 bar	-1 … +2 bar
Materials	Connection: 316L Antenna: PEEK Completion: FKM, FFKM	Antenna: PTFE, PFA	Antenna: PTFE Seal: FKM, EPDM	Antenna: PP Adapter flange: PPGF 30 Seal: FKM, EPDM Mounting bracket: 316L

Features

Very good signal focusing allows the sensor to be used also in cramped conditions
High measurement accuracy, including due to the low number of interference from embedded structures
Chemically highly resistant materials ensure a long service life of the sensors
Easy initial installation and diagnostics, including via smartphone or tablet

Technical data

	Measuring range:	up to 30 m
	Joining:	Thread from Gb, ¾ NPT, flange from DN50, 2", hygienic connections
	Process temperature:	-40 ... +200 °C
	Operating pressure:	-1 ... +20 bar (-100 ... +2000 kPa)
	Measurement accuracy:	+/- 2 mm
