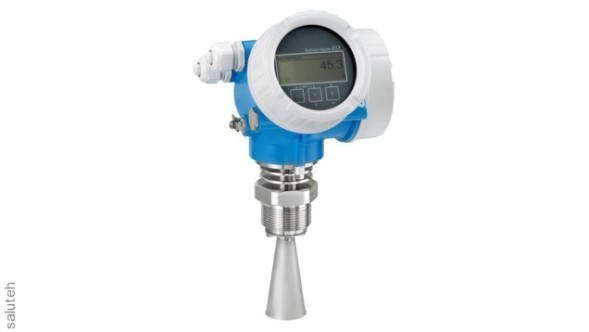

Micropilot FMR62-GBACBBGNF6CGK+AIF4PB72 Radar Interceptor

Micropilot FMR62 It is suitable for level measurement even in extreme operating conditions, for example, at high temperature and high pressure in the oil and gas and chemical industries. FMR51 provides maximum reliability thanks to the patented innovative sensor surface design.Level gauge Micropilot The FMR52 is designed for continuous non-contact level measurement of liquids, pastes and pulps. The measurement process is not affected by changes in the medium, temperature, or the presence of gas or steam layers.

Specifications:

Principle of measurement	Radar measurement principle
Specifications/Application	Non-contact radar level gauge for liquid products; Horn antennas for extreme application conditions Antenna diameter: 40...100 mm
Additional information	Functional safety SIL 2(IEC 61508) Multi-Echo Tracking Echo Processing Function HistoROM Data Storage Module
Food /Communication	2x-wire connection (HART /PROFIBUS PA/FOUNDATION Fieldbus) 4-wire connection (HART)
Frequency	~26 GHz
Error rate	+/- 2 mm
Ambient temperature	-40...+80 °C
Operating temperature	-196...+450 °C
Operating pressure abs. /max. overpressure limit	The vacuum...160 bar
Wetted parts	316L, Alloy C, PTFE, Ceramic
Joining the process	Threaded: MNPT 1 1/2, R 1 1/2 Flanged: DN50...DN150, ASME 2"...6", JIS 10K, 63K
Hygienic connection to the process	Tri-Clamp ISO2852
Max. measurement value	Standard: 40 m (131 ft) With enhanced dynamics: 70 m (229 ft)
Exit	4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus
Certificates/Standards	ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, KC
Safety approvals	Overfill prevention WHG SIL
Certificate of construction	EN 10204-3.1 NACE MR0175, MR0103 ASME B31.3 AD2000
Marine Certificate	GL/ABS/LR/BV/DNV
Options	Local display Custom paremetrization Gas tight seal Antenna Extension Cable Silicone and Grease Cleaning (PWIS)
Application range	The maximum measurement range depends on the shape of the tank and/or its application The ammonia gas phase: FMR54 in the sedative tube Intensive sediment formation: FMR54 with compressed air purge function 316L or Alloy C unstable: FMR50, FMR52, FMR53 Sanitary and hygienic requirements: MR52, FMR53 Measurement in the commercial accounting mode: FMR5xx
