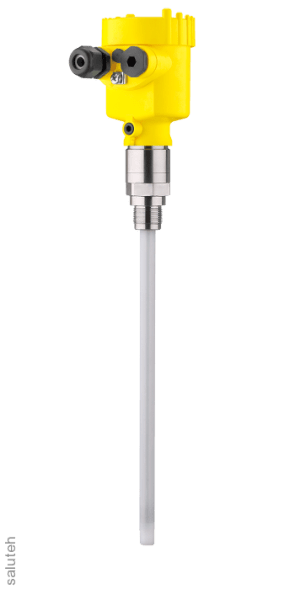

The VEGACAL 64 level gauge is designed for continuous level measurement in
all industries. Fully isolated VEGACAL 64 probe
It is used mainly on viscous and sticky conductive liquids.
Features
- Insensitivity to sticking
- Durability and maintenance-free operation
- High functional reliability
- Easy installation and initial installation
- Measurement along the entire length of the probe
- High-resistance FEP insulation material
Technical data
Execution:Fully insulated rod
Measuring range:up to 4 m
Joining:Thread from Gb, ¾ NPT, flanges from DN 25, 1"
Process temperature: -50... +150 °C
Process pressure:-1 ... +64 bar (-100... +6400 kPa)
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
