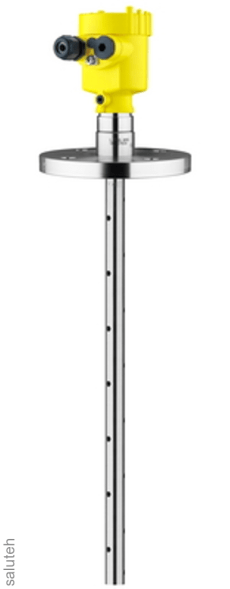

The VEGAFLEX 65 coaxial level gauge is designed for continuous measurement of the level of low-viscosity liquids. The level gauge can be used to measure the level of solvents and flammable liquids. All instruments are supplied with the factory setting for the ordered probe length.
The principle of operation
High-frequency microwave pulses are directed along the rod inside the coaxial tube and reflected from the surface of the product. The time from transmission to reception of the signal is proportional to the level of the product in the container.
Advantages
- - Commissioning without setting up
- - Independence from the properties of the product
- - Insensitivity to vapours and condensation
- - Independence from the height of the pipe and side structures
- - High measurement accuracy
- - SIL qualification
Overview information
- Application:Liquids
- Measuring range of the coaxial: up to 6 m
- Connection: thread from GA, flange
- Process temperature: -40...+150 °C
- Process pressure: -1...+40bar (-100...+4000kPa)
- The measurement accuracy is +/- 2 mm
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
