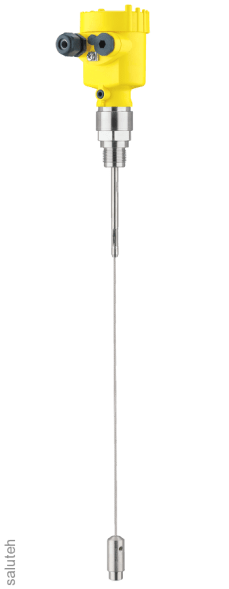

VEGAFLEX 81 level gauge
VEGAFLEX 81 is designed for measurement on liquids. The level gauge provides accurate and reliable measured values under all conditions of use, including steam, sticking, foaming or condensation.
VEGAFLEX 81 is an economical solution for level measurement and phase separation.
Features
- The initial installation with an assistant program provides an easy and quick start-up
- Advanced diagnostic capabilities ensure long-term maintenance-free operation and high operational readiness
- Shortened probes simplify the design of measurement sites
Technical data
- Version:replaceable cable probe (ø 2 mm, ø 4 mm) /replaceable rod probe (ø 8 mm, ø 12 mm) /coaxial probe (ø 21.3 mm, ø 42.2 mm)
- Measuring range:cable probe up to 75 m /rod probe up to 6 m /coaxial probe up to 6 m
- Connection:thread from Gb, ¾ NPT /flange from DN 25, 1"
- Process temperature :-40 ... +200 °C
- Process pressure:-1 ... +40 bar (-100 ... +4000kPa)
- Measurement accuracy:+/- 2 mm
Scope of application
Cable, rod, or coaxial sensor. Even in the case of steam, accumulation, foam or condensation, the sensor provides accurate and reliable readings, including in risers or bypass pipes.
The VEGAFLEX 81 level sensor measures all types of maintenance-free liquids. Even in applications with steam, accumulation, foam formation and condensation, the sensor provides accurate and reliable measured values. VEGAFLEX 81 is a cost-effective solution for various level and interface measurements.
- The controlled setup provides a simple, time-saving and reliable setup.
- Shortened sensors offer simple standardization and the highest flexibility in planning
- Extensive diagnostic capabilities ensure maintenance-free operation and, consequently, high availability of the installation.
The VEGAFLEX 81 radar sensor is exceptional when it comes to measuring the level or interface of liquids. Guided radar is extremely versatile and can be found in almost all industries. Whether it is bitumen or liquefied gas, in storage containers or risers, in a metering tank or in tank farms - VEGAFLEX 81 measures the level or interface (separation layers) of liquids with high reliability and accuracy.
The guided radar provides reliable measurement data for control or safety systems for:
- Level measurement in ammonia storage tanks
- Measuring the level in risers
- Measurement of interfaces in tanks, bypass pipes, risers
