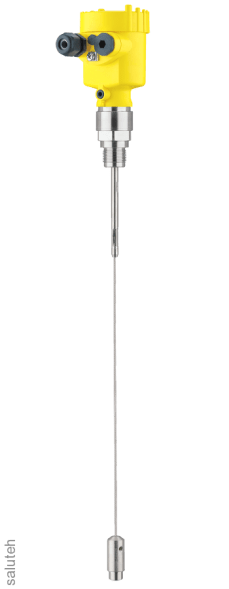

Уровнемер VEGAFLEX 81 FX81.АCETFFHX8DХX L=2775mm

VEGAFLEX 81 is designed for measurement on liquids. Level gauge

provides accurate and reliable measured values under all conditions

applications including steam, sticking, foaming or condensation.

VEGAFLEX 81 is an economical solution for level measurement and phase separation.

Features

• The initial installation with an assistant program provides an easy and quick start-up
• Advanced diagnostic capabilities ensure long-term maintenance-free operation and high operational readiness
• Shortened probes simplify the design of measurement sites

Technical data

Version:replaceable cable probe (ø 2 mm, ø 4 mm) /replaceable rod probe (ø 8 mm, ø 12 mm) /coaxial probe (ø 21.3 mm, ø 42.2 mm)

Measuring range:cable probe up to 75 m /rod probe up to 6 m /coaxial probe up to 6 m

Connection:thread from Gb, ¾ NPT /flange from DN 25, 1"

Process temperature :-40 ... +200 °C

Process pressure:-1 ... +40 bar (-100 ... +4000kPa)

Measurement accuracy:+/- 2 mm
