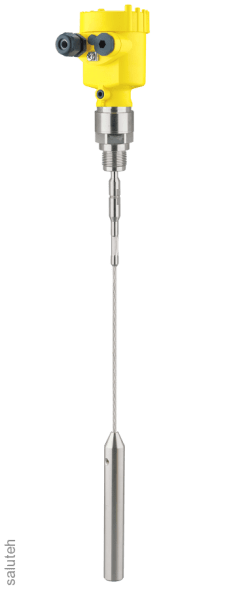

VEGAFLEX 82 FX82.ARATIFHXA2XX 5500mm Level Gauge

VEGAFLEX 82 is designed to measure light and heavy bulk materials

products of any kind. The level gauge provides accurate and reliable

measured values under all conditions of use, including strong

dust formation, condensation or sticking. VEGAFLEX 82 - economical

a solution for measuring the level.

Features

• The factory installation greatly simplifies commissioning
• Advanced diagnostic capabilities ensure long-term maintenance-free operation
• Shortened probes simplify the design of measurement sites

Technical data

Version:replaceable cable probe (ø 4 mm, ø 6 mm, ø 11 mm) /replaceable rod probe (ø 16 mm)

Measuring range:cable probe up to 75 m /rod probe up to 6 m

Connection:thread from Gb, ¾ NPT /flange from DN 25, 1"

Process temperature:-40 ... +200 °C

Process pressure:-1 ... +40 bar (-100 ... +4000 kPa)

Measurement accuracy:+/- 2 mm
