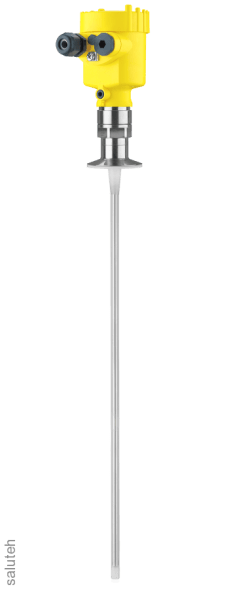

Уровнемер VEGAFLEX 83 FX83.AXEPJXHXKDXX, 1400mm

VEGAFLEX 83 is designed to measure aggressive liquids or

liquid products with the highest hygienic requirements. Level gauge

provides accurate and reliable measured values under all conditions

applications including steam, sticking, foaming or condensation.

VEGAFLEX 83 is an economical solution for level measurement and phase separation.

Features

• The initial installation with an assistant program provides an easy and quick start-up
• The special hygienic design ensures the most reliable cleanability
• Long-term maintenance-free operation increases the efficiency of operation

Technical data

Execution:cable probe (ø 4 mm) /rod probe (ø 8 mm, ø 10 mm)

Measuring range:cable probe up to 32 m /rod probe up to 4 m

Joining:Flanges from DN 25, 1“, hygienic types

Process temperature: -40 ... +150 °C

Process pressure:-1 ... +16 bar (-100 ... +1600 kPa)

Measurement accuracy:+/- 2 mm
