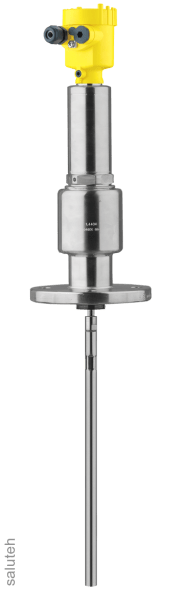

VEGAFLEX 86 is designed to measure almost any liquid
at extreme pressures and temperatures. The level gauge gives accurate and
reliable measured values for product sticking, foaming or
condensate. When used on saturated steam, measurement reliability
it is provided by taking into account the signal from a special reference point on
the probe. VEGAFLEX 86 is an economical technical solution for measuring
level and phase separation.
Features
- The initial installation with an assistant program provides an easy and quick start-up
- Advanced diagnostic capabilities ensure long-term maintenance-free operation and high operational readiness
- Shortened probes simplify the design of measurement sites
Technical data
Version:replaceable cable probe (ø 2 mm, ø 4 mm) /replaceable rod probe (ø 16 mm) /coaxial probe (ø 42 mm)
Measuring range:cable probe up to 75 m /rod probe up to 6 m /coaxial probe up to 6 m
Joining:Thread from Gb, ¾ NPT, flanges from DN 25, 1“
Process temperature:-196 ... +450 °C
Process pressure:-1 ... +400 bar (-100 ... +40,000 kPa)
Measurement accuracy:+/- 2 mm
