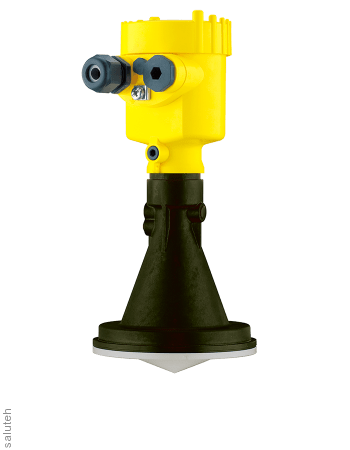

Urovnemer VEGAPULS 61 PS61.XXAGPHKMXX
The VEGAPULS 61 level gauge is designed for use on liquids under simple measurement conditions in almost any industry and is an economical solution due to its simple but reliable design and versatile mounting capabilities. The sealed antenna system ensures long-term operation without the need to organize and carry out periodic maintenance activities.
The device has two types of antenna system design:
- version with a sealed antenna system for measuring the level of aggressive liquids, as well as in cases where the use of an open horn antenna system is not possible (for example, in case of condensation or contamination during operation of the sensor);
- the version with a plastic horn antenna is particularly well suited for measuring the level of water and aqueous solutions, as well as flow in open trays and pressure-free pipelines.
Features
- Non-contact measurement
- High operational availability, as there is no wear and no maintenance required
- Accurate measurement results regardless of operating conditions
Technical data
- Measuring range: up to 35 m (depends on the type of antenna system and the properties of the measured product)
- Joining:Thread G1½A, 1½ NPT, mounting bracket, cap flange from DN80 or 3"
- Process temperature:-40 ... +80 °C
- Operating pressure:-1 ... +3 bar (-100 ... +300 kPa)
- Measurement accuracy:+/- 2 mm
