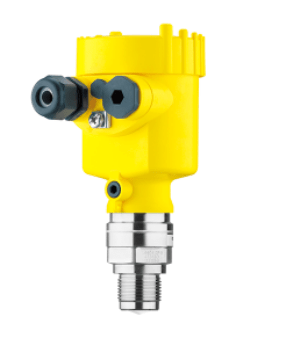

Urovnemer VEGAPULS 64 PS64.RXBAADHXAMXXX

Brand:Vega
For comparison
To favorites
Vendor code:PS64.RXBAADHXAMXXX
Urovnemer VEGAPULS 64 PS64.RXBAADHXAMXXX
Brand
Pre-order
$2 800,15
11
Delivery across Russia
On-line payment on the website
Discount system
Purchase returns
Description
Features
Reviews

Urovnemer VEGAPULS 64 PS64.AXTTCGHXKTXXX


The VEGAPULS 64 level gauge is designed for use in storage tanks, dispensers and process tanks in various measurement conditions. The device with different versions of the antenna system and with different equipment is applicable in almost any conditions and processes.


Type of connection

Carving

The flange

Hygienic fittings
Plastic antenna

Size /Directional pattern

G¾, ¾ NPT /14°
G1½, 1½ NPT /7°

DN 50, 2" /6°
DN 80, 3" /3°

≤6°

Operating temperature
-40 … +200 °C
-40 … +200 °C
-40 … +200 °C
-40 … +80 °C
Operating pressure
-1 … +20 bar
-1 … +20 bar
-1 … +16 bar
-1 … +2 bar
Materials
Connection: 316L
Antenna: PEEK
Completion: FKM, FFKM
Antenna: PTFE, PFA
Antenna: PTFE
Seal: FKM, EPDM
Antenna: PP
Adapter flange: PPGF 30
Seal: FKM, EPDM
Mounting bracket: 316L


Features

  • Very good signal focusing allows the sensor to be used also in cramped conditions
  • High measurement accuracy, including due to the low number of interference from embedded structures
  • Chemically highly resistant materials ensure a long service life of the sensors
  • Easy initial installation and diagnostics, including via smartphone or tablet

Technical data


Measuring range:
up to 30 m

Joining:
Thread from Gb, ¾ NPT, flange from DN50, 2", hygienic connections

Process temperature:
-40 ... +200 °C

Operating pressure:
-1 ... +20 bar (-100 ... +2000 kPa)

Measurement accuracy:
+/- 2 mm
