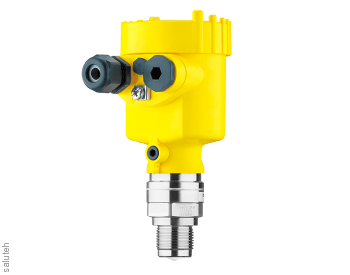

VEGAPULS 64 PS64 level gauge.RXFFHIHX8MKXX
The VEGAPULS 64 level gauge is designed for use in storage tanks, dispensers and process tanks in various measurement conditions. The device with different versions of the antenna system and with different equipment is applicable in almost any conditions and processes.
 |
 |
 |
 |
|
| Type of connection |
Carving |
The flange |
Hygienic fittings | Plastic antenna |
|
Size /Directional pattern |
G¾, ¾ NPT /14° G1½, 1½ NPT /7° |
DN 50, 2" /6° |
≤6° |
3° |
| Operating temperature | -40 … +200 °C | -40 … +200 °C | -40 … +200 °C | -40 … +80 °C |
| Operating pressure | -1 … +20 bar | -1 … +20 bar | -1 … +16 bar | -1 … +2 bar |
| Materials | Connection: 316L Antenna: PEEK Seal: FKM, FFKM |
Antenna: PTFE, PFA | Antenna: PTFE Seal: FKM, EPDM |
Antenna: PP Adapter flange: PPGF 30 Seal: FKM, EPDM Mounting bracket: 316L |
Features
- Very good signal focusing allows the sensor to be used also in cramped conditions
- High measurement accuracy, including due to the low number of interference from embedded structures
- Chemically highly resistant materials ensure a long service life of the sensors
- Easy initial installation and diagnostics, including via smartphone or tablet
Technical data
| Measuring range: | up to 30 m | |
| Joining: | Thread from Gb, ¾ NPT, flange from DN50, 2", hygienic connections | |
| Process temperature: | -40 ... +200 °C | |
| Operating pressure: | -1 ... +20 bar (-100 ... +2000 kPa) | |
| Measurement accuracy: | +/- 2 mm |
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
