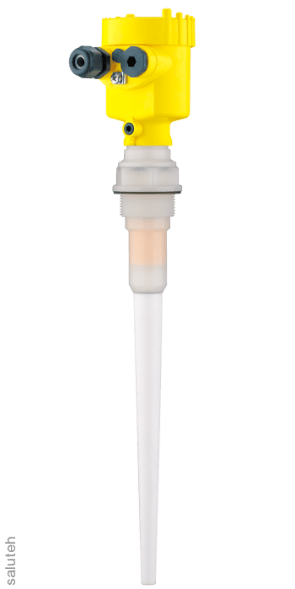

The VEGAPULS 65 level gauge is designed for use on liquids in
containers of medium and large sizes in almost any industry
industry. A distinctive feature of this radar level gauge
It is a combination of a special design with a sealed
a rod antenna system that is chemically resistant to most
aggressive environments, and the operating frequency of the C band (6 GHz), which makes it
indispensable in conditions of possible formation of abundant condensate and
foam, vaping, strong surface agitation and spray measured
of the product, as well as in conditions of formation of significant deposits
of the product on the antenna system.
Features
- Non-contact measurement
- Easy installation and small connection dimensions (thread from G1½A)
- No wear and no maintenance required
- Independent of pressure, temperature, gas and steam
- High measurement accuracy
- SIL Qualification
Technical data
Measuring range: up to 35 m
Joining:Thread from G1½A
Process temperature:-40 ... +150 °C
Working pressure:-1 ... +16 bar (-100... +1600 kPa)
Measurement accuracy:+/- 8 mm
