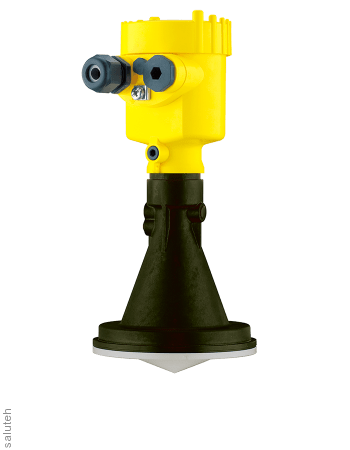

VEGAPULS 67 PS67.RXBXDHAMXX Level gauge

VEGAPULS 67 PS67.RXBXDHAMXX Level gauge

The VEGAPULS 67 level gauge is designed for use on bulk products under simple measurement conditions in small silos and containers. VEGAPULS 67 is a budget solution, thanks to its versatile and simple mounting options. The sealed antenna system ensures long-term operation without the need for cleaning, even when heavy deposits accumulate on its surface.

Features

• Non-contact measurement
• Easy installation
• No wear and no maintenance required
• High measurement accuracy
• SIL qualification (optional up to SIL2)

Technical data

• Measuring range:up to 15 m
• Joining:Mounting bracket, cap flange from DN80 or 3"
• Process temperature:-40 ... +80 °C
• Operating pressure:-1 ... +2 bar (-100 ... +200 kPa)
• Measurement accuracy:+/- 2 mm
